RPS AIR1200 Kit - Solar Pond Aeration System with Brushless Solar Air Compressor

New for 2025! RPS engineers worked countless hours to develop a solar powered air compressor kit that is now the most unique technology we've found anywhere on the internet to aerate your pond! Easily assembled and installed by one person in a single weekend. The AIR1200 solar powered air compressor pushes oxygen through a weighted hose down to a bubbling air stone, aerating multiple pond thermoclines with fresh O2.

The AIR1200 is our LARGEST solar aerator kit with 4 available ⅝” air hose hookups, MEGA air diffusers and provides 8.8 CFM per day. It’s a good match for up to 4 acre lakes 10-40 feet deep. Smaller ponds are also a good fit for the AIR1200, especially if you stock fish and require extra O2.

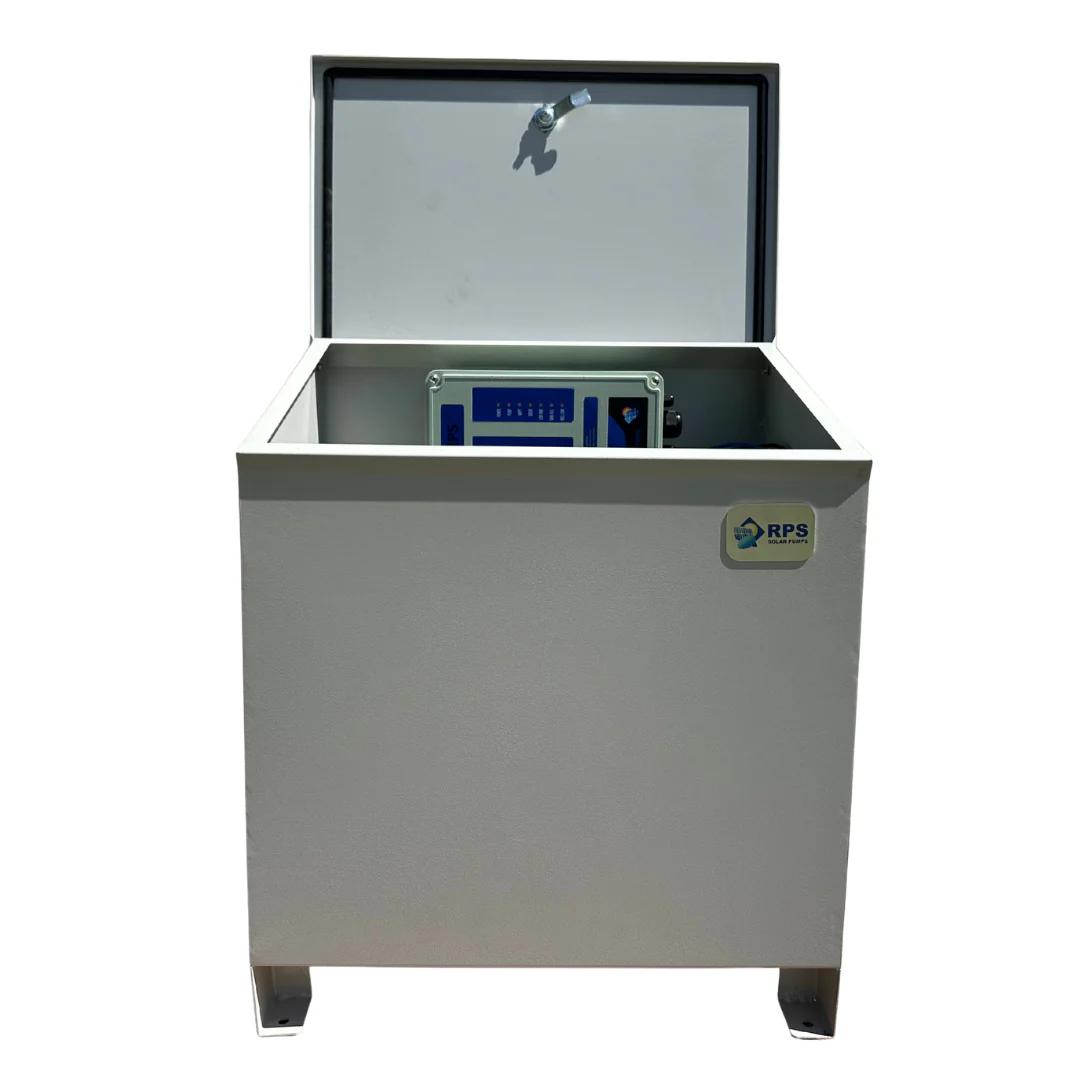

Don't worry about noise, this is a SUPER quiet compressor as we've added dual air intake mufflers, no more than 60 decibels which is equivalent to a quiet office setting! All of our kits come with a custom weather-proof metal enclosure to house the controller and compressor so you don't have to worry about your system being exposed to the elements. The enclosures are vented to promote airflow and prevent overheating.

A truly PLUG AND PLAY SYSTEM! RPS custom wires and assembles each one of these amazing AIR1200 kits at our facility in rural Northern California! RPS does 95% of the work for you, including…

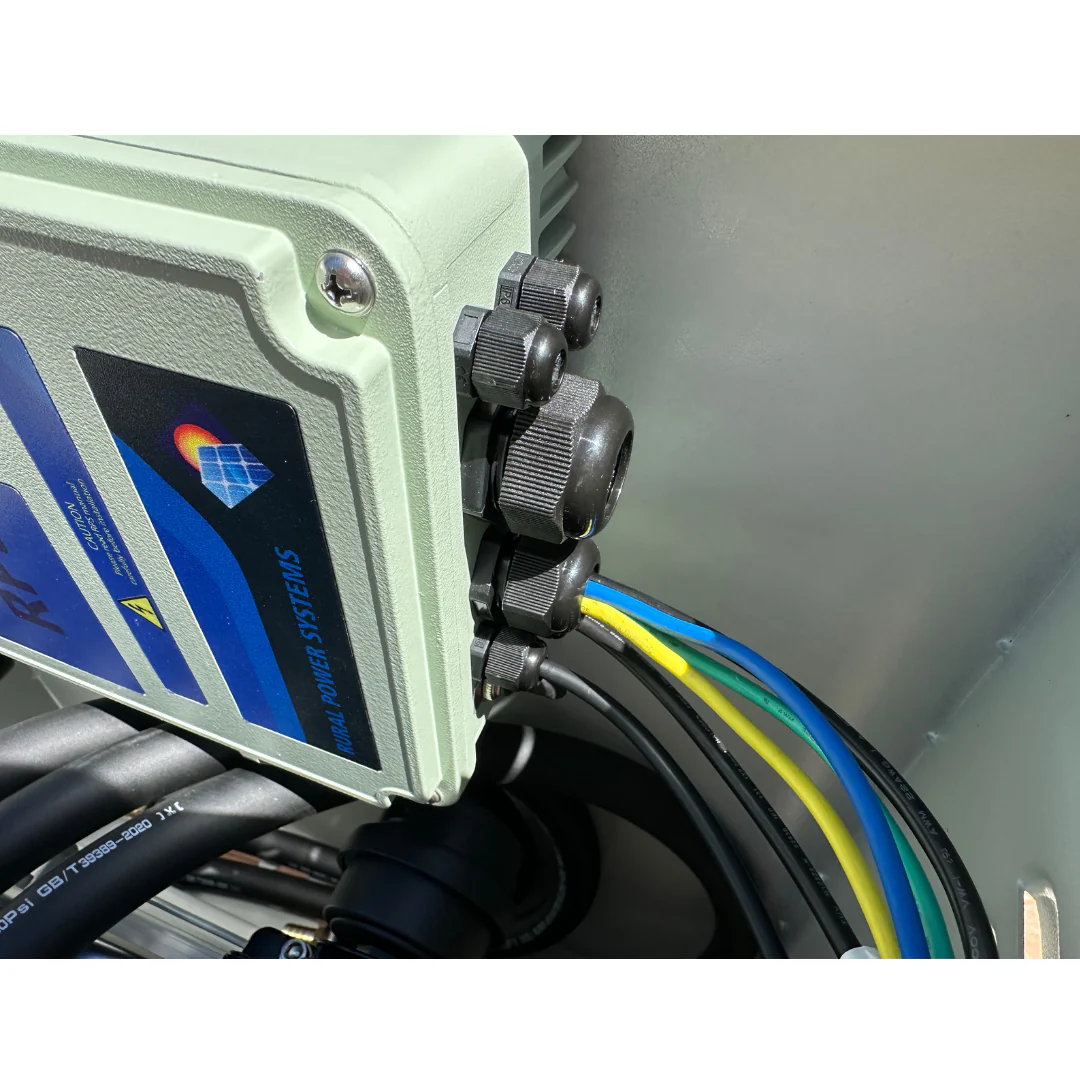

• Pre-wire the RPS Universal Controller with plug and play connectors for solar panel connection
• Pre-wire power wires from AIR1200 air compressor to the RPS Universal controller

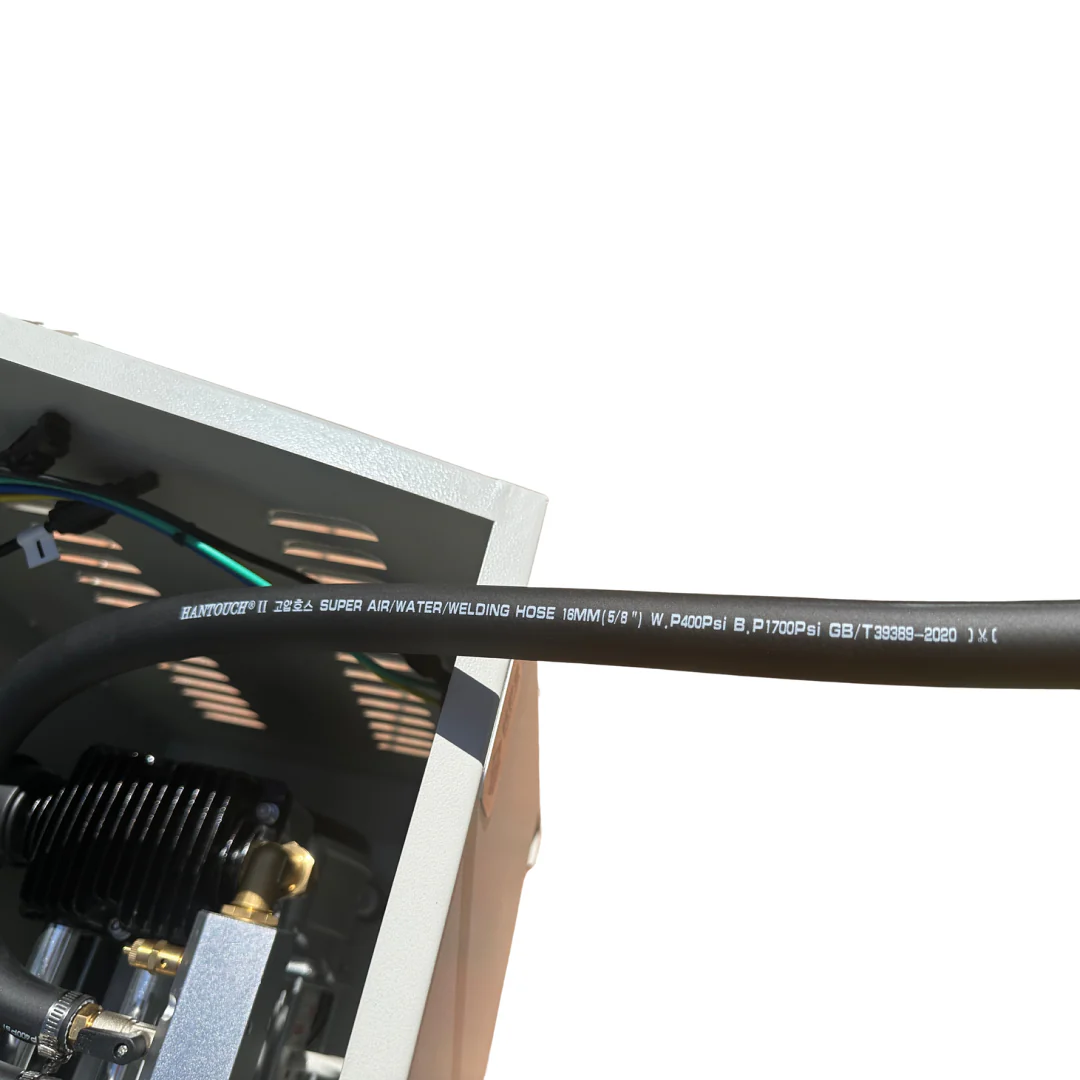

• Pre-Connect heat-proof air hose to the compressor hose barbs

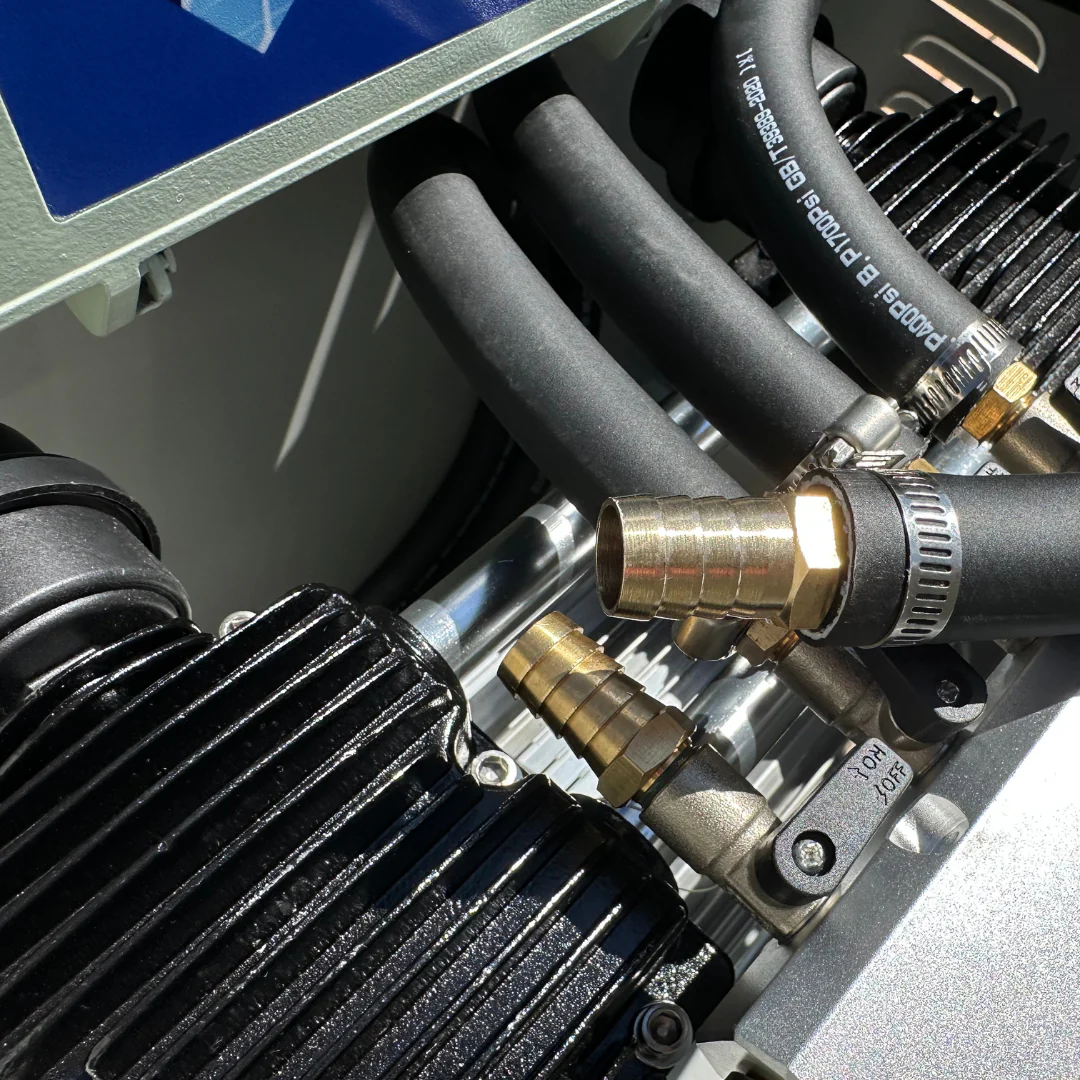

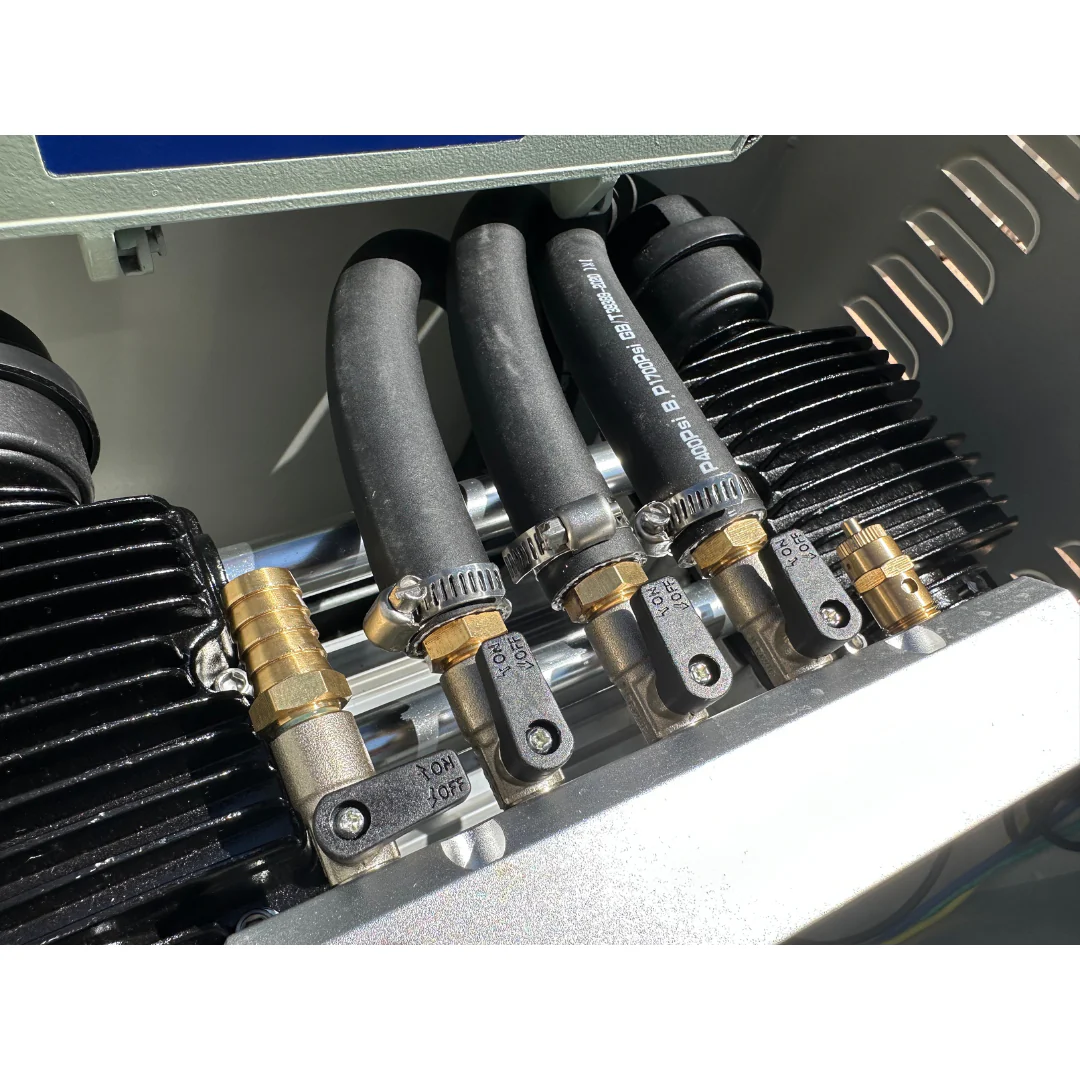

• Pre-Connect midlength hose barbs + apply stainless steel hose clamps

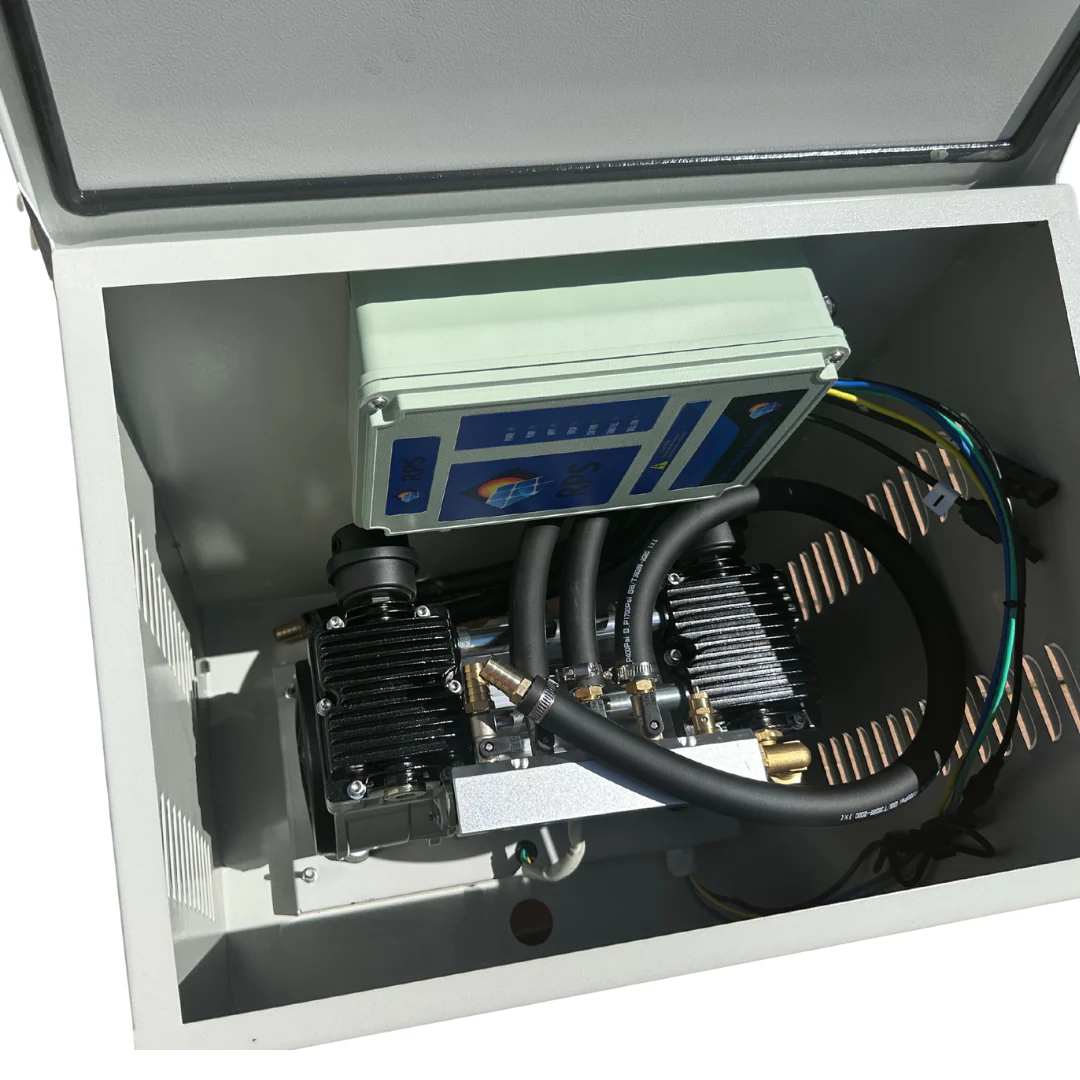

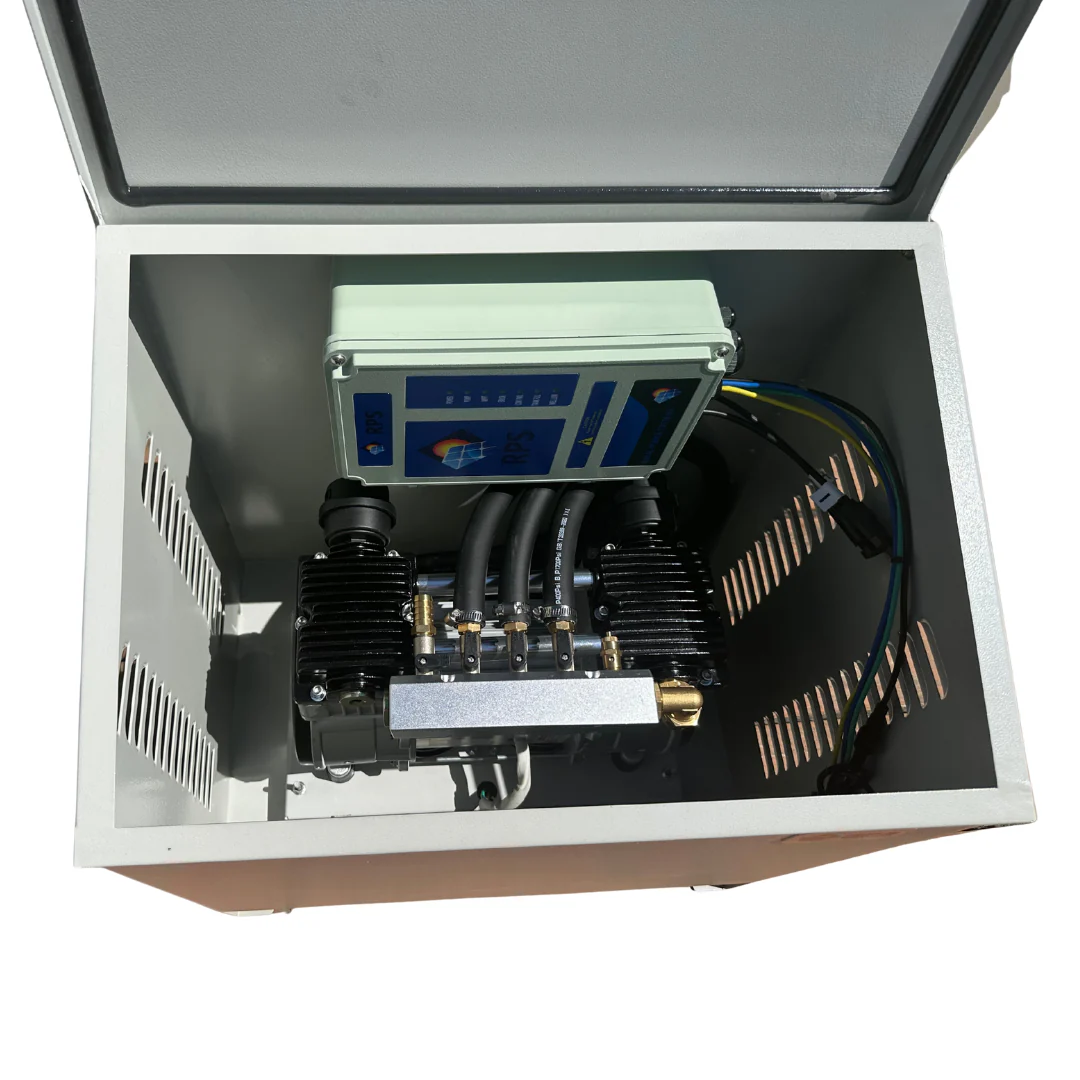

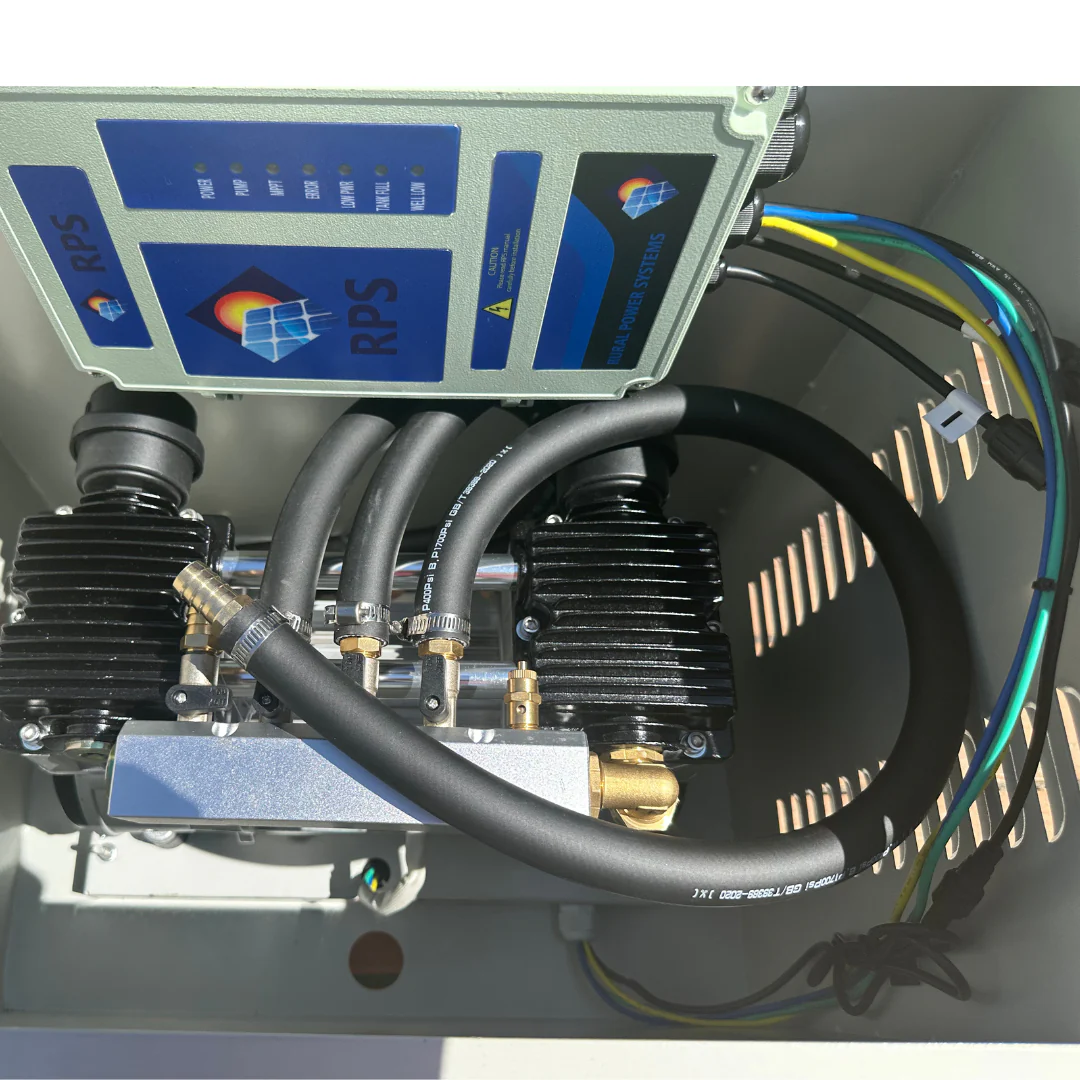

• Pre-Mount AIR1200 air compressor inside of enclosure
• Pre-connect noise dampening air filters
• Quality control of all of our products is handled by our USA facility team, we take pride in every single system that leaves our hands and is delivered to you!

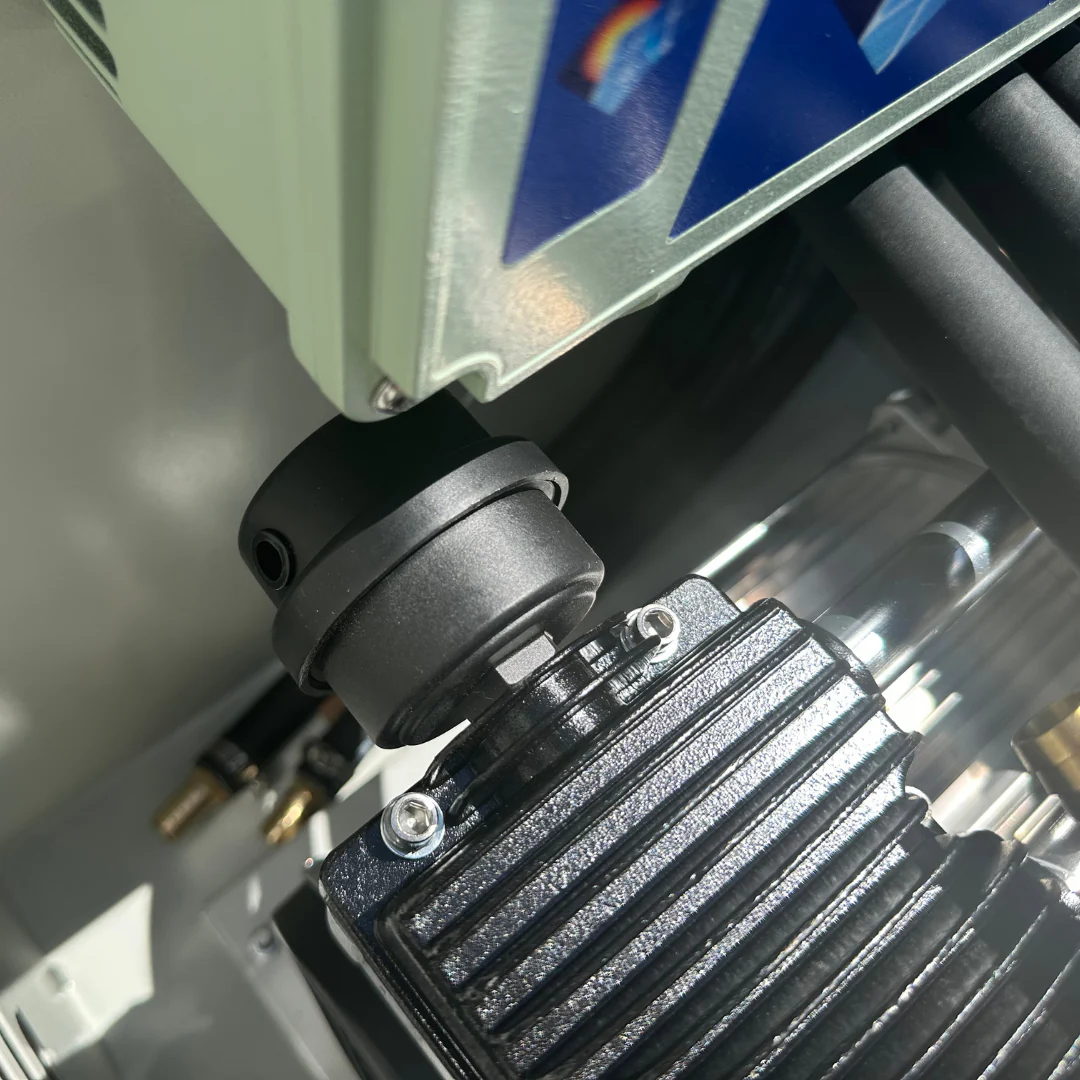

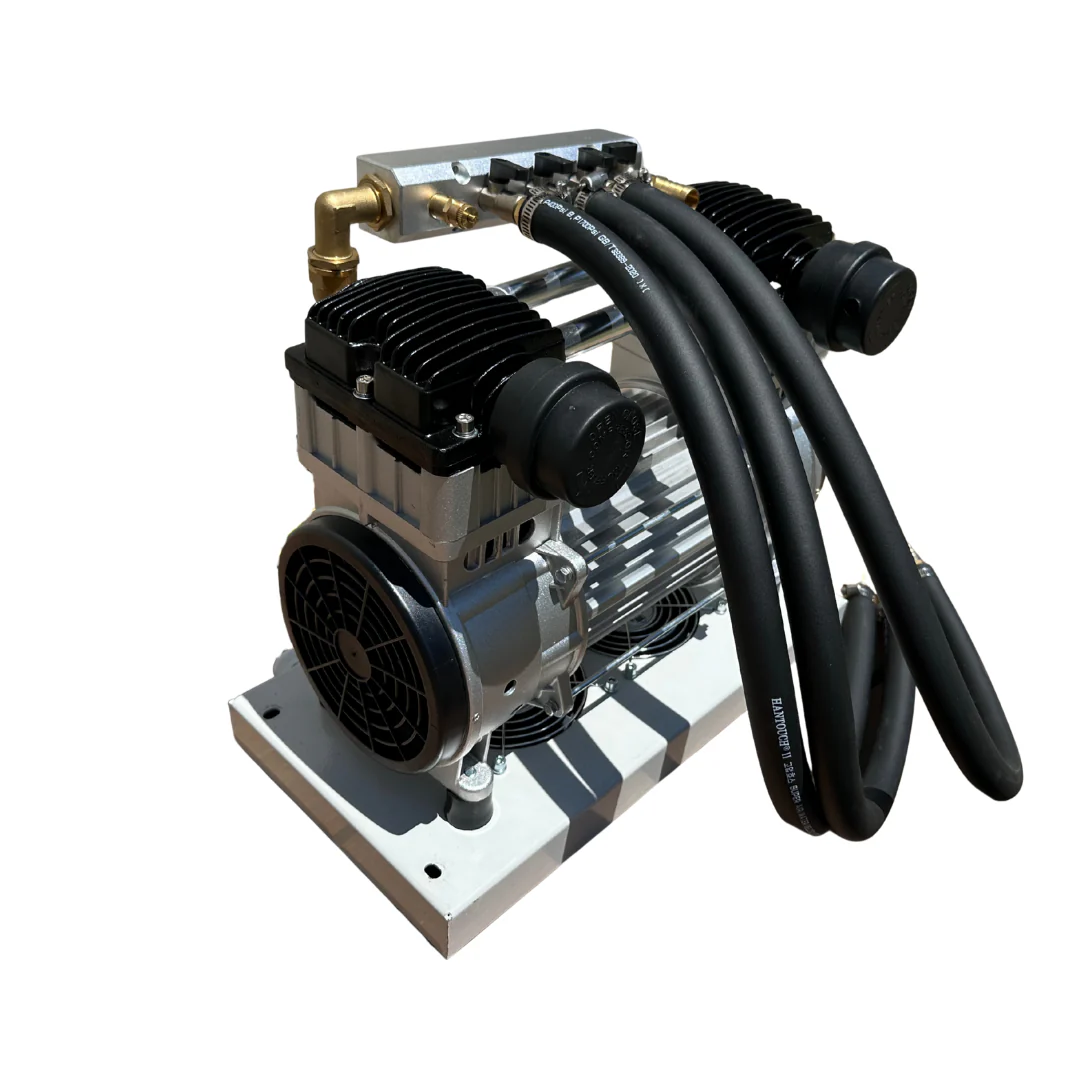

AIR1200 Compressor Features

• Max. pressure up to 50 psi. (Pressure relief valve functions at 40 psi)
• Oil-less non-lube piston and cylinder.
• Permanently lubricated bearings.
• Lightweight die-cast aluminum components.
• Cylinder hard coated for wear resistance.
• Head design allows replacement of piston seal.
• Balanced for smooth, low vibration operation

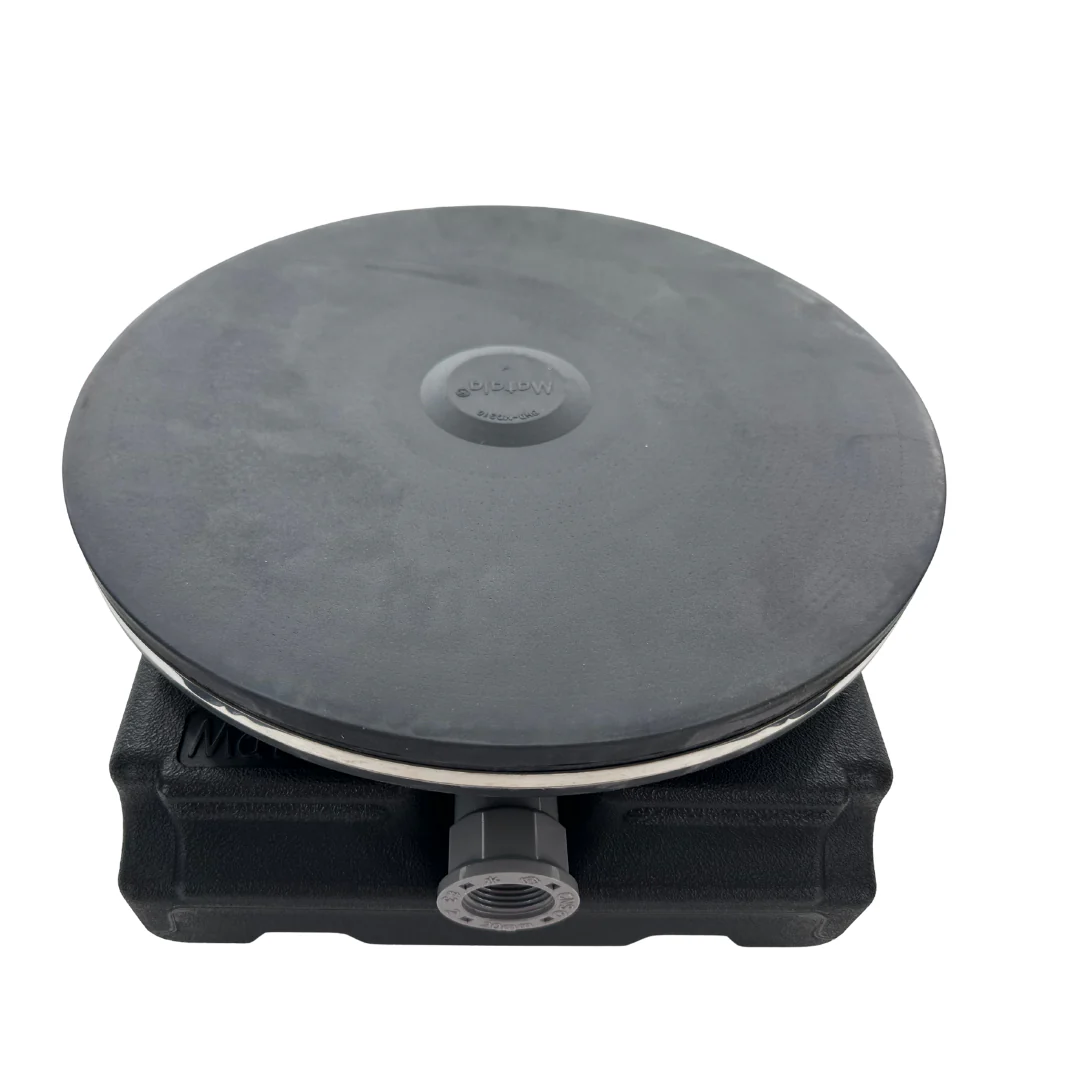

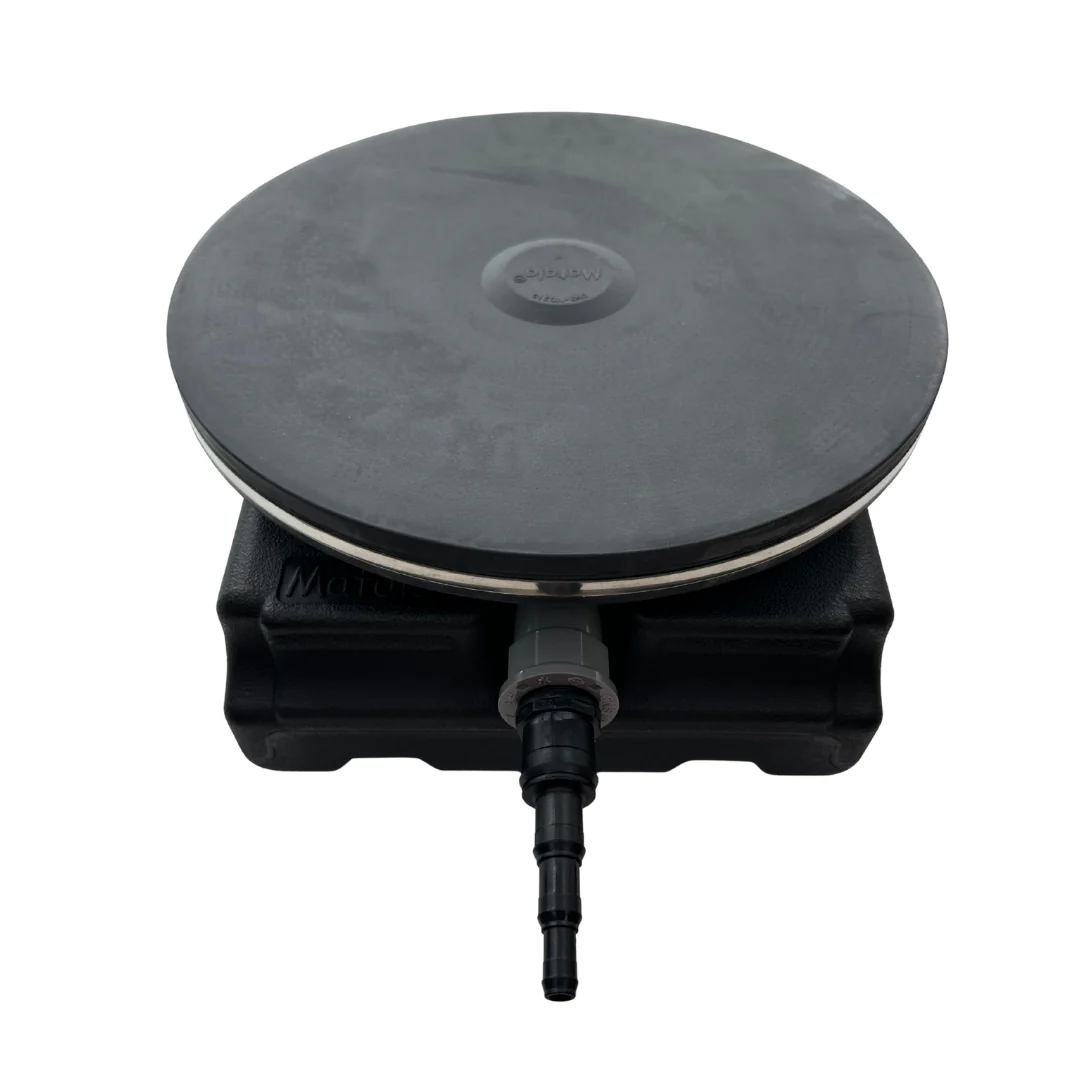

MEGA Diffuser Disc Features

• The air diffuser platform allows you to mount air diffuser(s) firmly at the bottom of the pond, or float closer to the surface to keep the air diffusers up and out of the mud.
  • The air diffuser platform is designed with a hollow base that can be filled with sand or gravel. Add more sand/ gravel for a heavier, lower sitting disc. Less sand/ gravel for a bit of buoyancy and higher sitting disc
• Precision perforated I-shaped slits are opened when airflow is applied The slits are closed when airflow is stopped. Slits resist tearing, and stay clean longer from muck and mud.
• These diffusers offer the lowest back pressure in the market, less than 6” of backpressure

Shipping

How does the AIR1200 ship?

• FREE Shipping on Every Order!
• Ships freight on a 50x45” pallet + Ships sitting on top of a mini wooden pallet INSIDE the AIR1200 box to protect enclosure feet
• Will ship within 48 hours of order completion

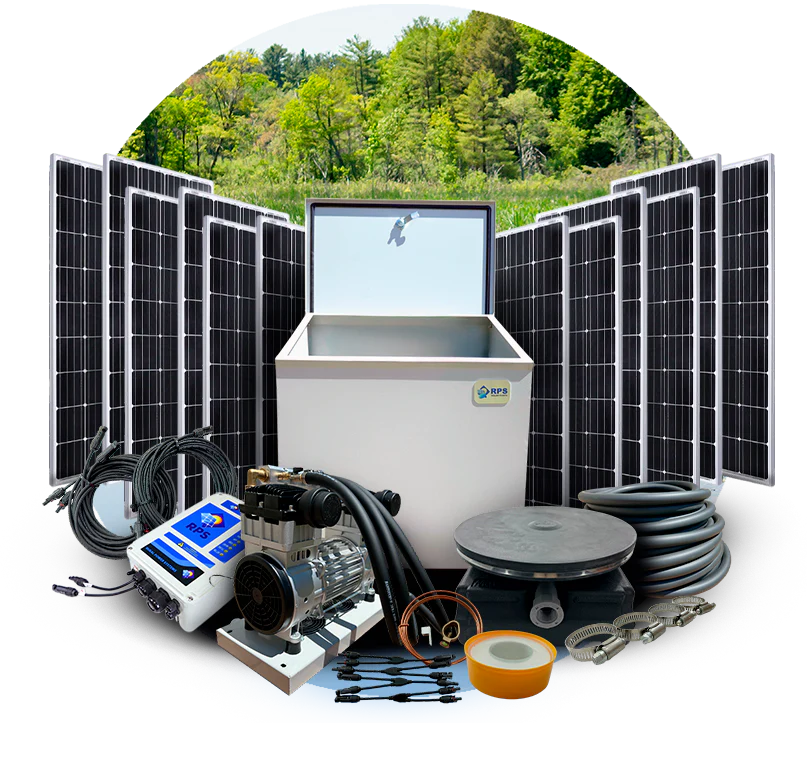

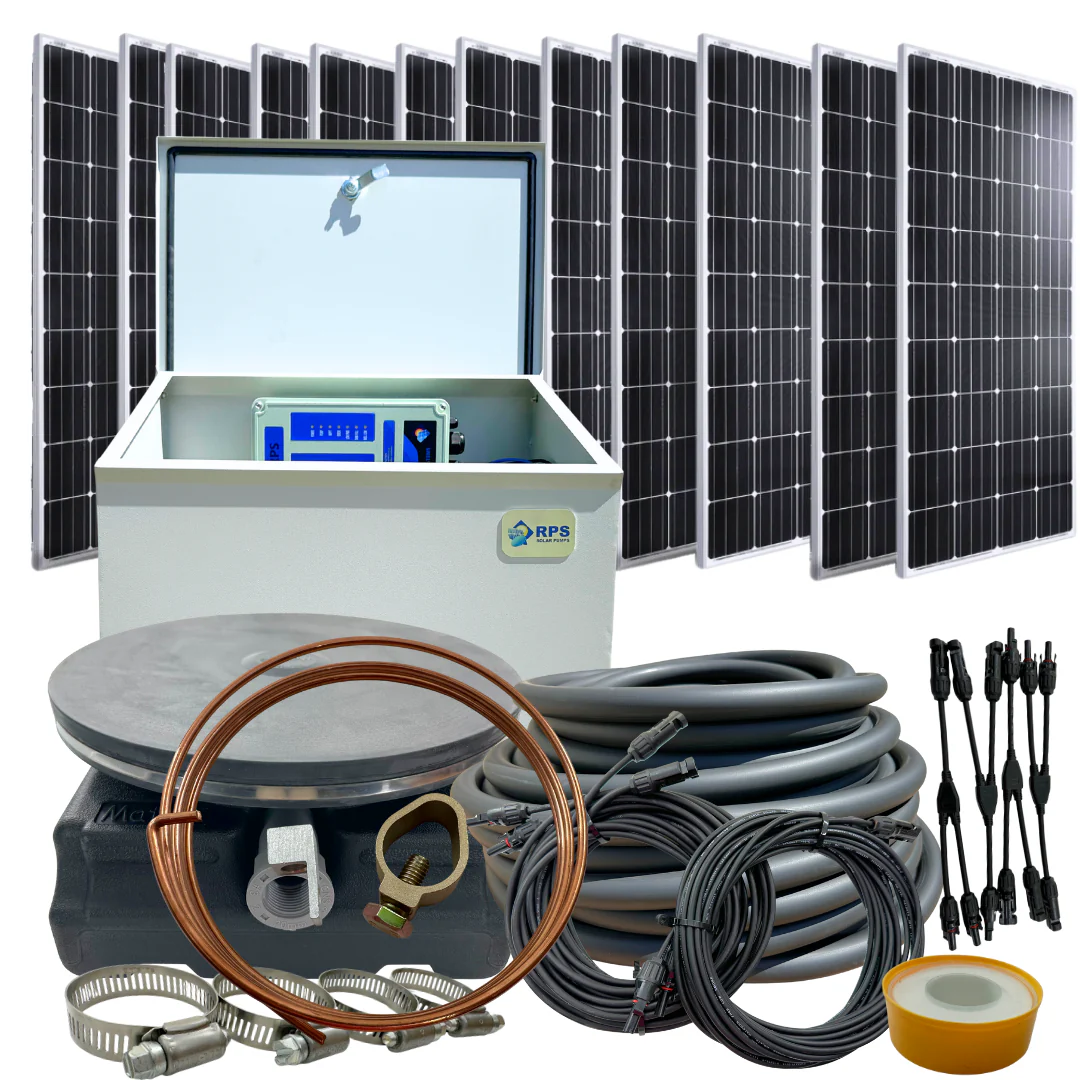

Kit Contents

Every RPS AIR1200 Kit Includes:

• (12) 100W solar panels (Dimensions are roughly 3.75' long, 1.6' wide, and a little more than 1" thick).
• 1100W Air Compressor (about 1.5HP) w/ 4 air hose line hookups
  • Oil-less non-lube piston and cylinder
  • Permanently lubricated bearings
  • Lightweight die-cast aluminum components.
  • Cylinder hard coated for wear resistance.
  • Head design allows for replacement of piston seal
  • Balanced for smooth, low vibration operation
• RPS Universal Controller w/ overvoltage protection

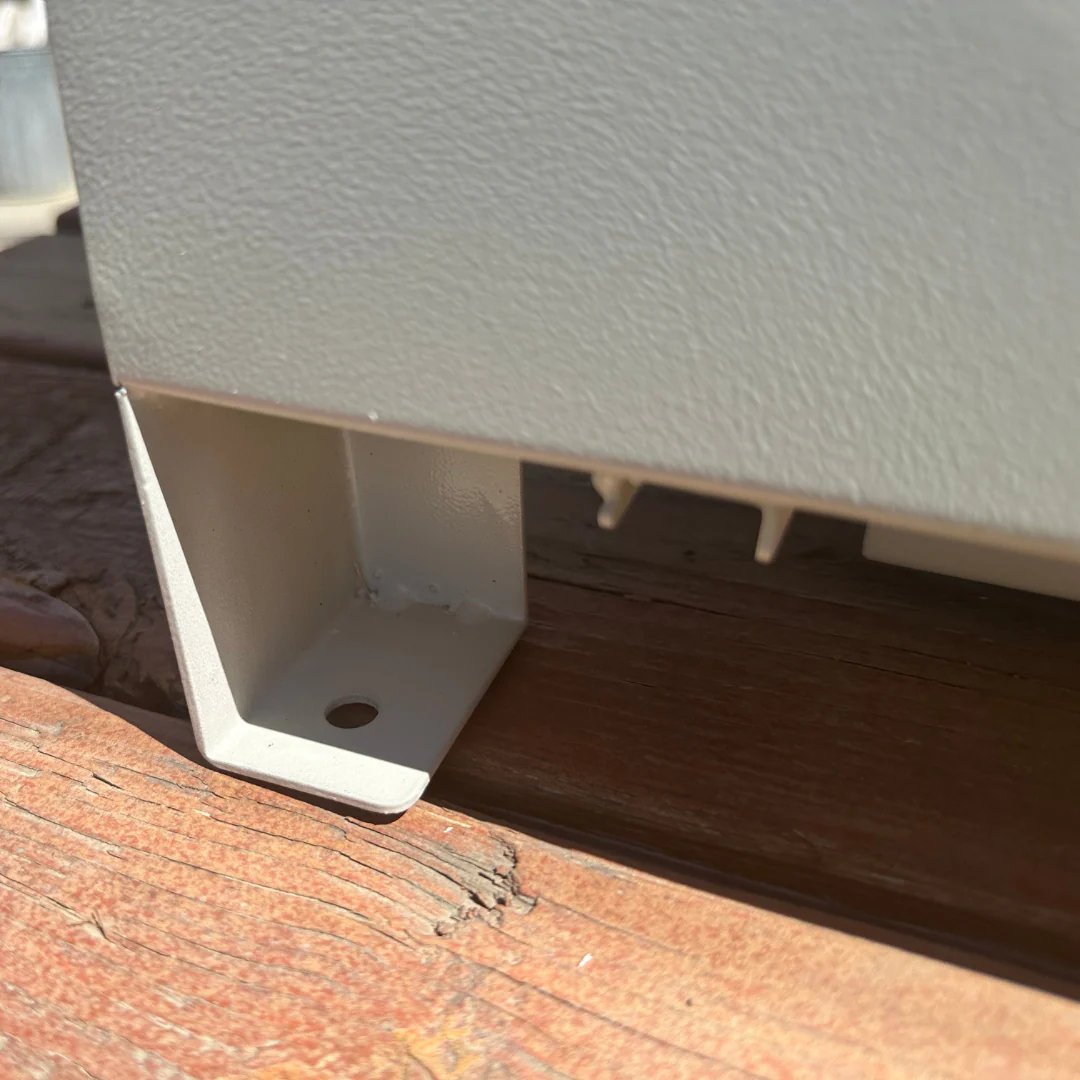

• Weather proof, year round enclosure with press to open top, ventilation ducts and feet with mounting holes
• 24V dual cooling fans for the compressor, effortlessly powered by the solar panel array!
• 2 noise dampening air filters
• 3 or 4 HUGE 12” diameter weighted air diffuser disc w/ ⅝” hose barb hookup
• 3 or 4 ⅝” brass hose barbs
• 3 or 4 stainless steel hose clamps
• 3 or 4 2ft heat-proof air hose
• Y-Connectors for wiring solar panels in parallel
• 20ft length of solar wire
• 10ft length of solar wire
• Grounding kit w/ copper wire and grounding lug
• 50ft or 100ft strands of ⅝” air hose (flexible thick walled PVC)

Dimensions

Component Dimensions

Solar Panels: 45.5 x 20.5 x 1.4in

AIR 1200 Compressor: 13.5” L x 9.2” W x 11.7” H

RPS Universal Controller: 13” L x 8” W x 6” H, ~10lbs. Air Stone: Diameter: 7",  ~3lbs

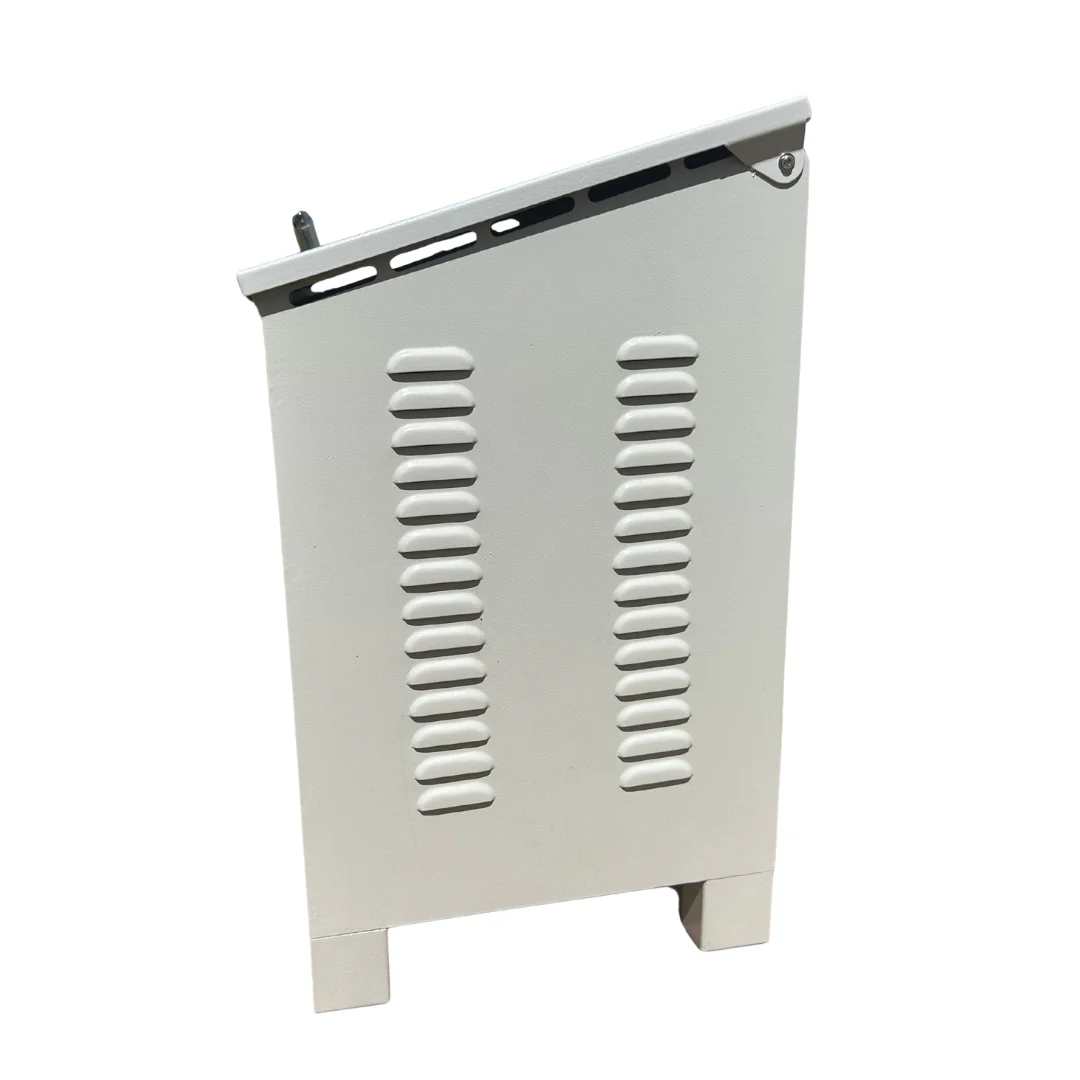

Dimensions of Enclosure

AIR1200 Enclosure Dimensions:

Back Height: 26"

Front Height: 23.5"

Total Width: 22.5"

Total Depth: 16"

Clearance underneath: 2.25"

Outlet Hole on Bottom of Container: 1.75"

AIR 1200 MEGA Diffuser Disc: 12” diameter / 5.5” H /10” W front / 11.5” W back / ⅝” hose barb connection
