RPS 800 Solar Well Pump Kit

For deeper wells, the RPS 800 remains the most popular on the market. Eight easy-to-mount solar panels offer powerful performance at an amazing price - up to 3200 gallons a day, and over 1,600 gallons at 300ft. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as needed. The most efficient brushless permanent magnet motors mean no replacement of carbon brushes and years of smooth, reliable performance. Lifetime Rotor Warranty and the only field-serviceable pump available save you thousands over other options.

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

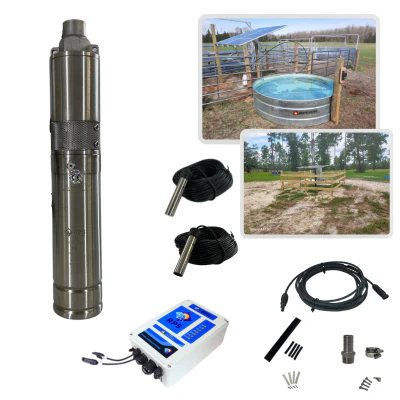

Kit Contents

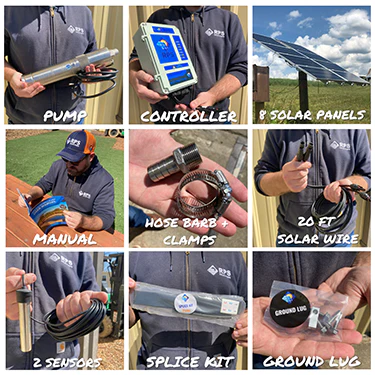

RPS 800 Kit contains:

• 8x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels (Dimensions are roughly 3.2' long, 1.7' wide and a little more than 1" thick)

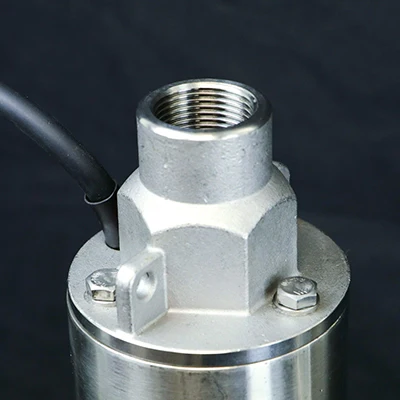

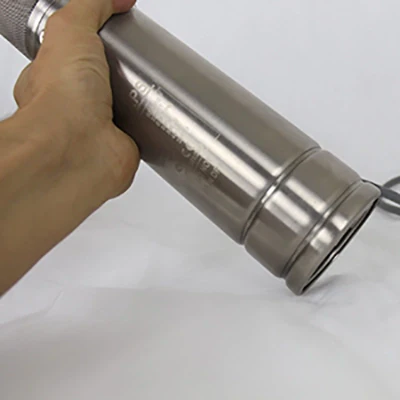

• RPS Helical Rotor Pump with DC Brushless Permanent Magnet Motor

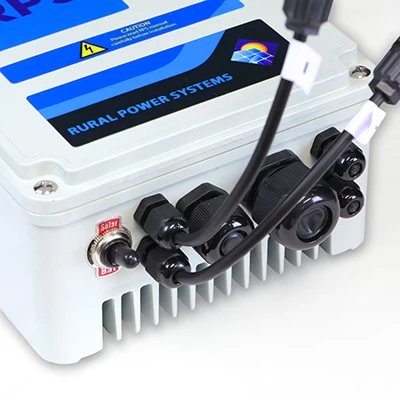

• RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop

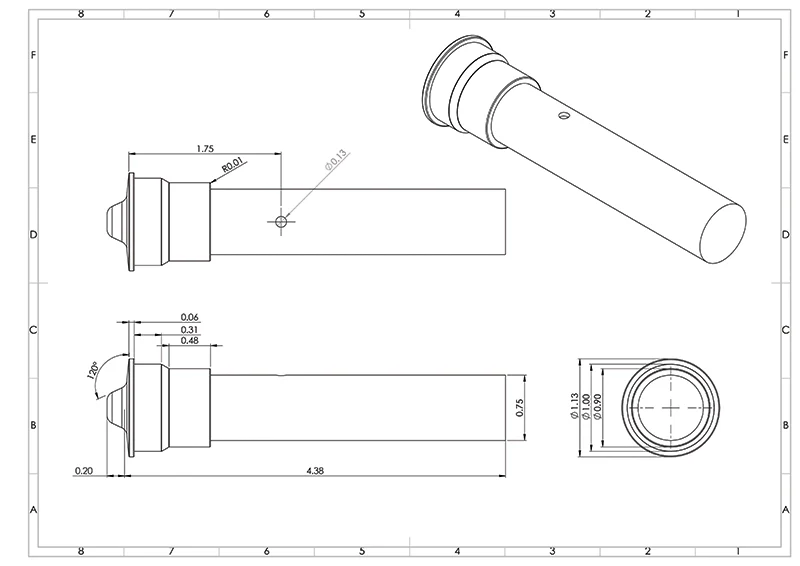

• 3/4" hose barb and hose clamps for use with black poly pipe (or ask for 1" if you prefer)
• 1x Low-water Well Level sensor
• 1x Tank Shut-off sensor
• Solar Panel cable connectors
• Waterproof heatshrink wire splice kit with pre-crimped pump wires
• Detailed full-color solar pump guide for step-by-step planning & install
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
• Access to RPS video archives of installation tips & product walkthroughs
• 30 Day Money-Back & 100% Water Assurance Guarantee
• Lifetime Rotor Warranty which is only wear part and Field Serviceable
• 2 Year Comprehensive Warranty
• Phone / Email / Text Support from Friendly USA based RPS Engineers
• 20 Year Solar Output Guarantee
• 25 Year Support Guarantee with Reconditioned Swap Pricing
• RapidReplace™ Program*

Solar panel mounting is not included in the standard RPS 800 system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.

Component Dimensions:

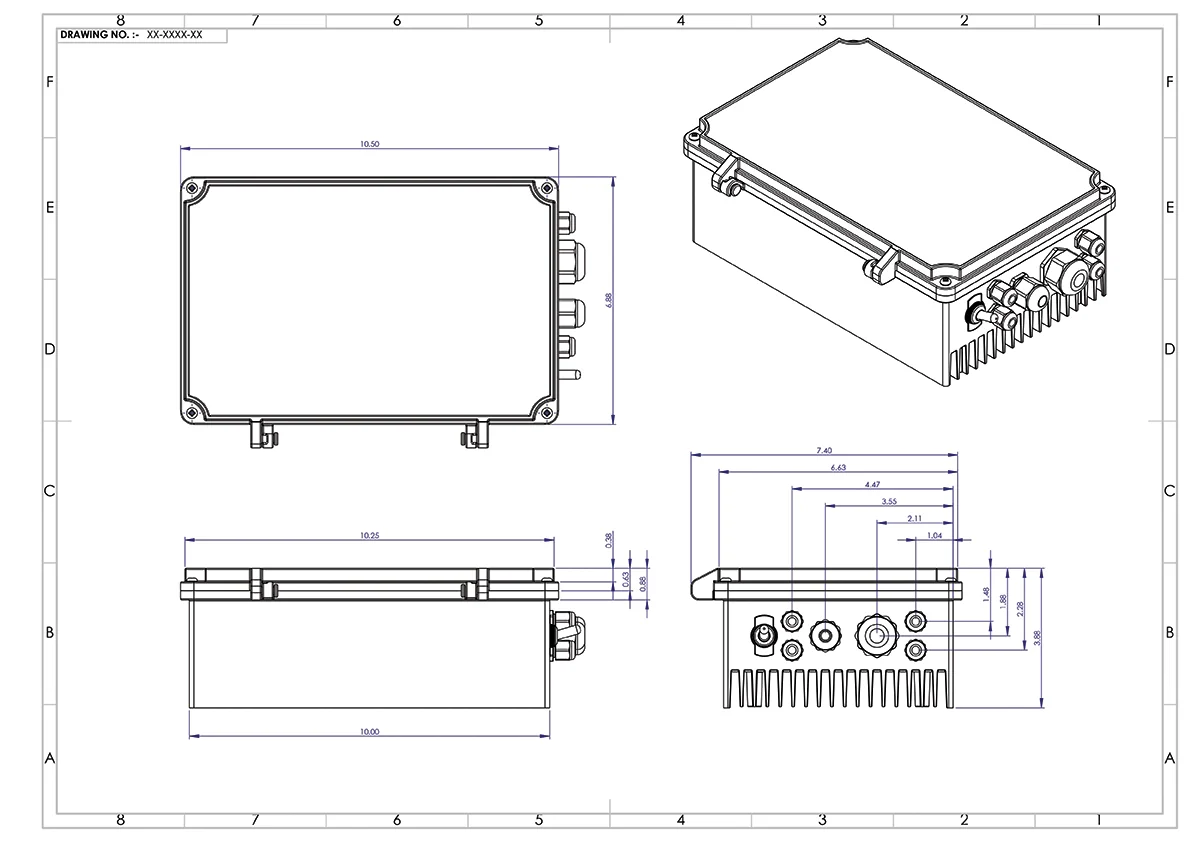

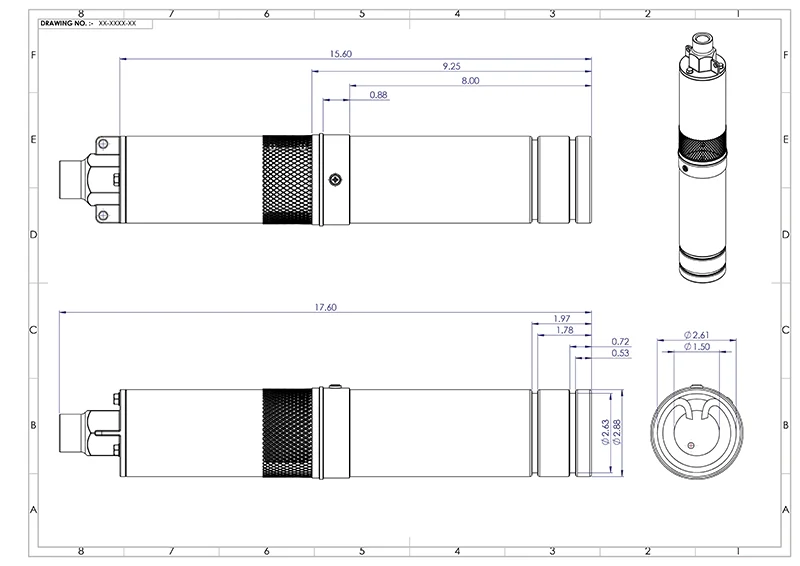

Solar Panels: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Well Pump: 2.9" OD,  22" Long, 3/4" Outlet ~15lbs Controller: 13” x 8” x 6”, ~10lbs

Downloads:
RPS 800 SPEC SHEET.PDF 📄
100W SOLAR PANEL SPEC SHEET.PDF 📄

Optional Add-ons and Upgrades:

	Pump Kit Only +Add to Cart	Pump Kit + Turnkey Kit +Add to Cart	Pump Kit + 8P Mount Kit +Add to Cart
RPS Solar Pump & RPS Solar Controller	✅	✅	✅
Solar Panels 100W Aluminum Frame	✅	✅	✅
Solar Panel Mounting Adjustable Tilt Pole Mount		✅	✅
Controller Mounting 2” or 4” Post Straps & Plates		✅
Controller Mounting Tabs & Lags for Plywood	✅	✅	✅
Solar Wire Two 20’ Lengths with MC4s	✅	✅	✅
Steel Post + Cement 2-3/8” OD or 4.5” OD Pipe	Customer Supplied	Customer Supplied	Customer Supplied
12-3 Pump Wire 6’ + butt crimps on pump		✅ 100’ or 200’ or 300’
Pump Wire Splice Kit With Wire Labels	✅	✅	✅
Low Water Sensor + Wire	✅ 100’	✅ 100’ or 200’ or 300’	✅
Tank Full Sensor + Wire	✅ 100’	✅ 100’	✅ 100’
Sensor Wire Splice Kit	✅	✅	✅
Safety Rope Yellow No-Decay Twisted Poly		✅ 100’ or 200’ or 300’
Black Poly Pipe 160psi Rated		✅ Choose ¾” or 1”
Pump-to-Poly Pipe Barbed Coupling + Hose Clamps	✅	✅	✅
Well Seal SS Plumbing All Stainless with barb & tee		✅
Standard Well Seal		✅ Choose 4”, 5”, 6” or 8”
Grounding Lug for controller	✅	✅	✅
Bare copper wire roll & Grounding Clamp		✅
Grounding Rod 4’ or 8’ if required by code	Customer Supplied	Customer Supplied	Customer Supplied
Teflon Tape For SS plumbing		✅
Electrical tape For bundling pipe/rope/wire		✅
Digital Multimeter For testing voltages if needed		If Requested
Our Award Winning RPS Support Team if you need us!	✅	✅	✅
	Pump Kit Only +Add to Cart	Pump Kit + Turnkey Kit +Add to Cart	Pump Kit + 8P Mount Kit +Add to Cart

Sizing

Gallons to Expect from RPS 800

* Based on a 6 hour solar pumping day



	Gallons Per Day	GPM
No head	3204	8.9
25	3168	8.8
50	3132	8.7
75	2952	8.2
100	2844	7.9
125	2628	7.3
150	2592	7.2
175	2484	6.9
200	2340	6.5
225	2124	5.9
250	1908	5.3
275	1836	5.1
300	1620	4.5

Need a different model? RPS 200, RPS 400, RPS 600, RPS 800, RPS 400V, RPS 800V, Pro V Series, Pro D Series or



not sure what you need? Use the popular online Sizing Wizard.

---

Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back!  Start Sizing Now »

---
