RPS Big Ag Well Pump Series 7.5HP to 25HP

CALL 888-637-4493 FOR PRICING AND A CUSTOM QUOTE. We custom size all BIG AG PUMPS for your needs (even if higher than the GPM quoted here) and give you a better estimate on costs and lead times. We are often able to beat the listed price!

The BIG AG PUMPS are for titans of Agriculture. Large irrigation systems with big water demands and pressure from high-volume Ag wells 6” and up. The same reliability and technology as our popular 5hp Pro Series is expanded up to 5 times with systems up to 25 Horsepower. 3-Phase 6” Motors and 6" Pump Ends allow for up to 350 GPM at pressure and up to 375’ of head at that flow rate. All BIG AG PUMPS come pre-wired with breakers, surge protection, disconnect switches. Solar Arrays are sized with enough wattage to power your pump’s motor for 6+ hours per day in USA’s best solar states. With more runtime during growing seasons in TX, AZ, NM and CA.



Big Ag Solar Pump Kits Include:

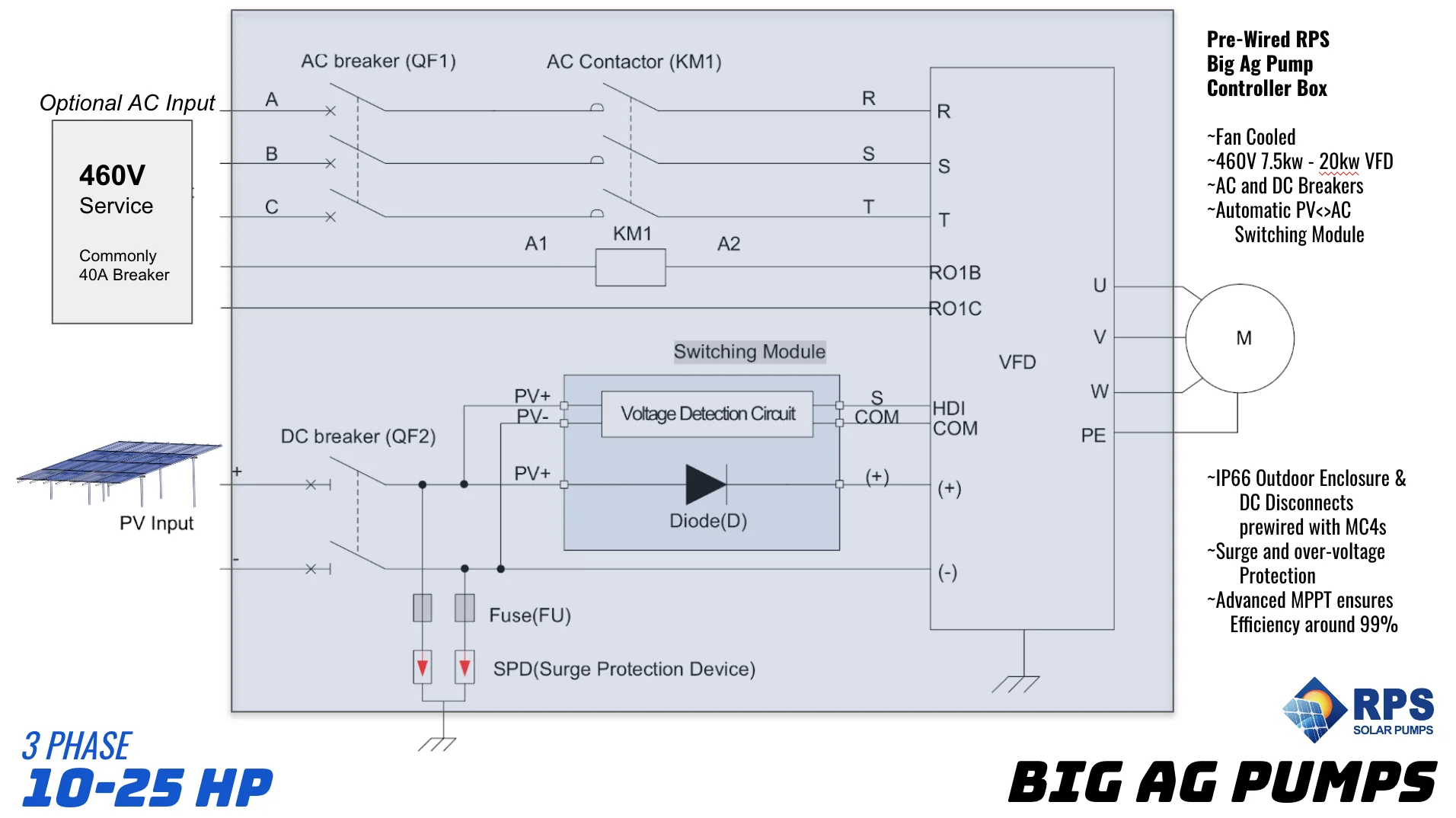

• Master Enclosure -This large sturdy enclosure is the brains of the system. It arrives pre-programmed for the specific HP your pump and motor (whether existing or from us) and will adjust the speed of the pump’s motor based on available power from the sun. The enclosure is drip proof with a cooling fan and contains a number of electrical parts, breakers, fuses and terminal blocks.
• 304 Stainless Steel Submersible Pump (or customer surface pump)
• Combiner Box - The combiner box brings each string together in parallel to feed it into the main control panel. The combiner box also provides additional fused protection for each incoming string

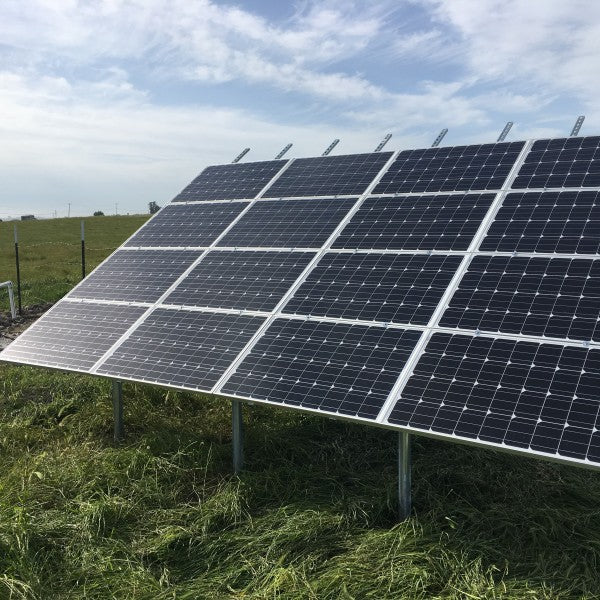

• MonoCrystalline Solar Panels - Number of solar panels will depend on the HP of pump.
• DC Disconnect Switch - One disconnect for each string provides isolation and safely de-energizes it for maintenance and troubleshooting

• Solar Extension Wire - 50 foot cables for each string allows for flexible enclosure mounting in proximity to the array

Ask About New Financing Options

* Lead times vary

Solar Panels: 79" x 39" x 1.4", ~51 lbs Each      390W 60/120 Mono  Pump & Controller: Dependent on model



Kit Contents:

HP + amount of panels*

# of DC Disconnects

Master Enclosure

Combiner Box

50’ Solar wire pair

1000V PV Cable (6-8’)



DOWNLOADS:

BIG AG SPEC SHEET.PDF📄

375W SOLAR PANEL SPEC SHEET.PDF 📄

390W SOLAR PANEL SPEC SHEET.PDF 📄

Sizing

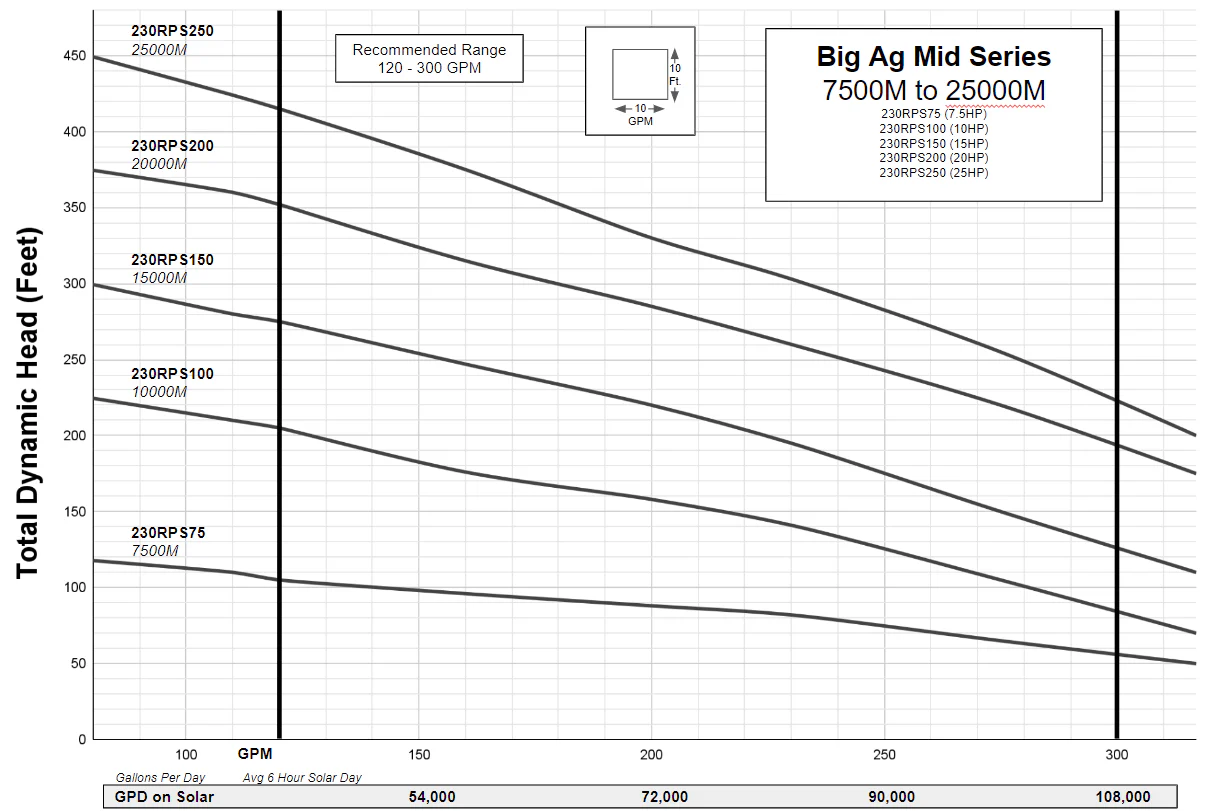

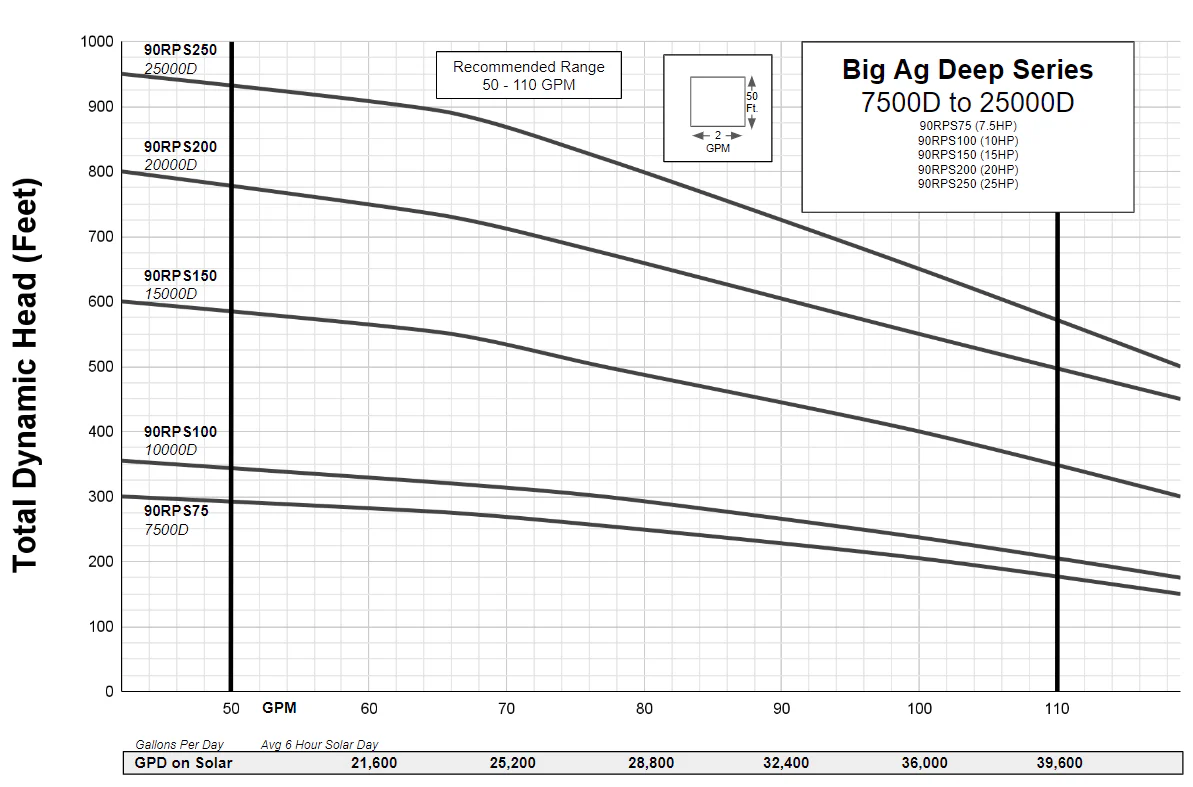

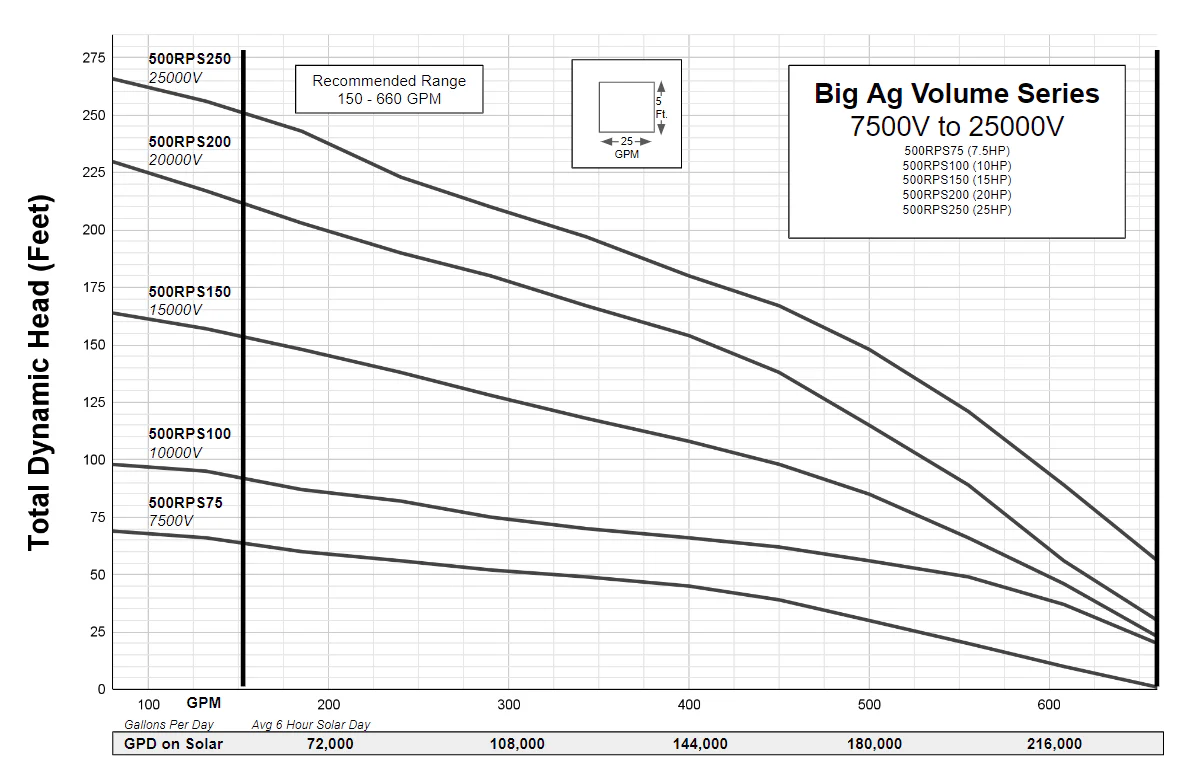

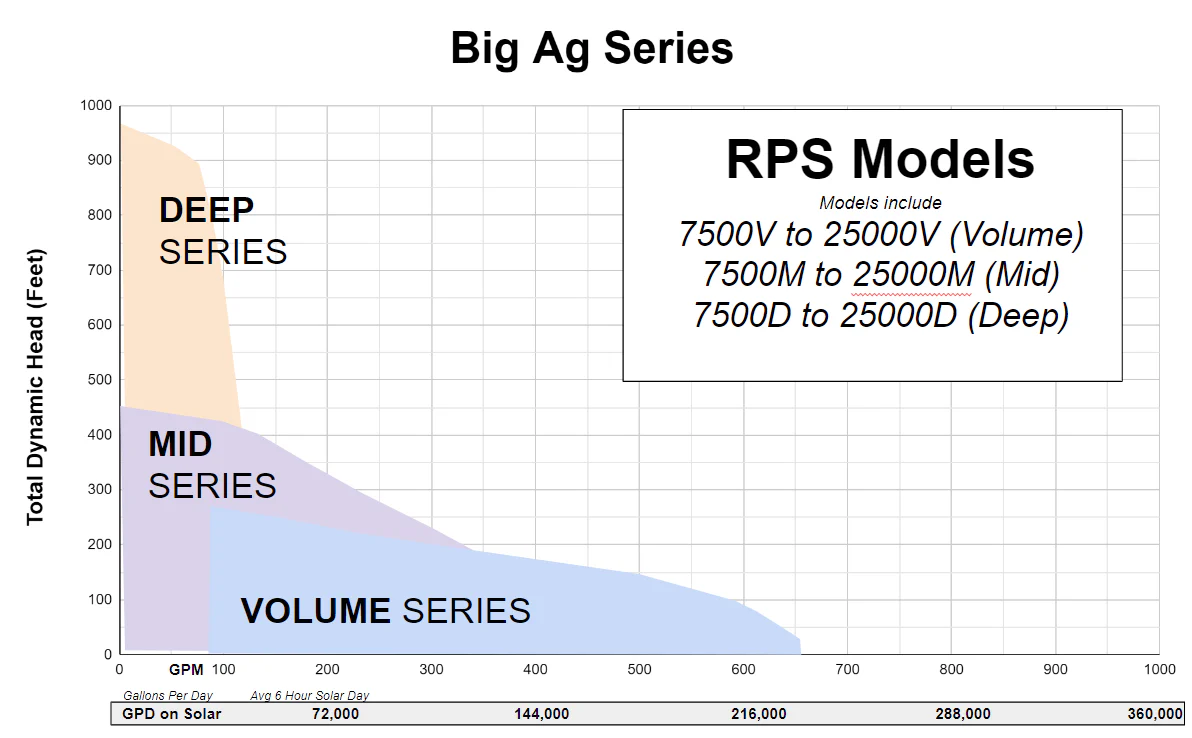

	Voltage	Solar Array	Outlet	GPM / TDH Range (Deep, Mid or Volume)
7.5 HP	460V **	13,320W	3” or 5"	90 GPM at 225’ , 200 GPM at 85' or 555 GPM at 20'
10 HP	460V **	13,320W	3” or 5"	90 GPM at 260', 290 GPM at 90' or 660 GPM at 25'
15 HP	460V **	19,980W	3” or 5"	90 GPM at 450', 290 GPM at 140' or 660 GPM at 35'
20 HP	460V	26,640W	3” or 5"	90 GPM at 610', 290 GPM at 200' or 660 GPM at 40'
25 HP	460V	33,300W	3” or 5"	90 GPM at 725', 290 GPM at 230' or 660 GPM at 50'

Do your water requirements not fall under the listed pumps above? Don't worry we have custom pump ends that cover a wide range to fit your projects needs, call our pump specialists at 888-637-4493!

It is possible to size a solar system for above 25HP models of water pumps, please call our office 888-637-4493 for a customer planning experience and quote.
