RPS Pro GB Booster Pump

*Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.*

Our Pro GB Pumps are for super high head, non-submersible applications where suction is not necessary (usually plumbed to tanks). The systems use best-of-the-best USA 3-Phase GOULDS Pumps. Our controllers are some of the best in the world and allow customization and optimization based on sun and season. There is no other kit like this on the market.



RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

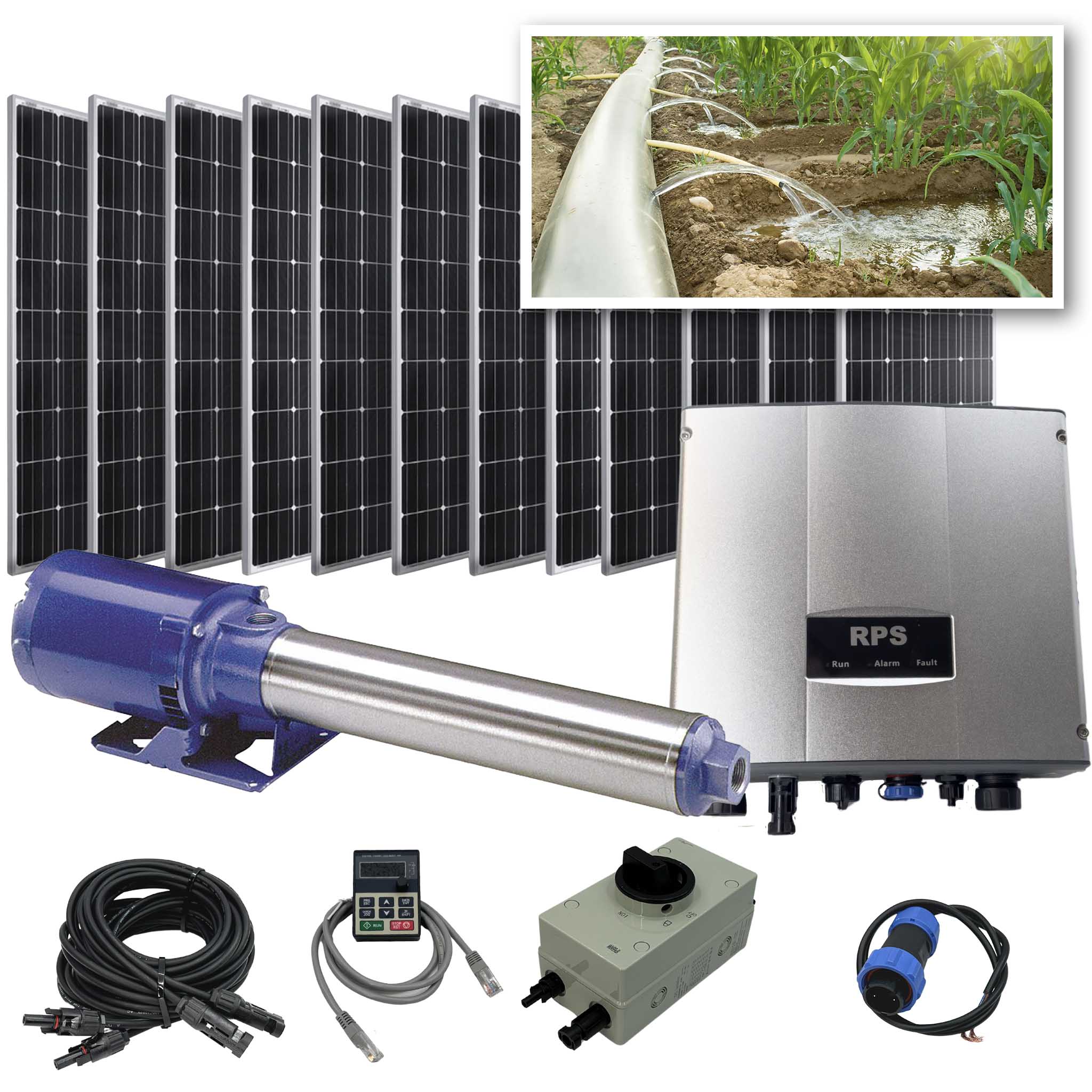

Kit Contents

The RPS Pro Irrigation systems contain:

• 1HP Goulds GB Booster Pump (see curves above)
• 2.2 kW Rated Solar Controller (takes DC Voltage from Solar Panel array +ability to run with 3000w 220v 1 Phase Generator)
• 3 Phase 220v adaptor plug to make your own generator cord as needed
• 1.2kW array with Mono Crystalline solar panels
• Grounding Kit (copper wire, lug and tape)
• Simplified Wiring Diagrams for easy hookup
• Email support before and during installation
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
• 2 Year Comprehensive Warranty
• 20 Year Solar Output Guarantee
• 25 Year Support Guarantee with Reconditioned Swap Pricing
• RapidReplace™ Program*



Solar panel mounting is a separate cost, we have easy-to-install DIY Scalable Ground Mounting and Adjustable Top-of-Pole options.

Unlike our line of 3'' Submersible Pumps, like the RPS 200, 400, 800, the surface pump TPP or even our Gridless Sump Pump, the Pro Series is not compatible with batteries.

Copper rod for grounding is customer supplied.

Component Dimensions:

Solar Panels: Small: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Large (390W): 79" x 39" x 1.4", ~51 lbs Each Well Pump: Model Dependent, 1" Inlet/Outlet ~14lbs Controller: 12" x 10" x 6" ~14lbs



Downloads:

RPS PRO GB BOOSTER SPEC SHEET.PDF 📄

100W SOLAR PANEL SPEC SHEET.PDF 📄

390W SOLAR PANEL SPEC SHEET.PDF 📄

Sizing

Gallons Per Day (GPD)

Head (ft)	Pro GB1000  Gallons Per Day (6 hrs)	Pro GB1000 Gallons Per Minute (GPM)
100	3,240	9.0
200	2,880	8.0
300	2,520	7.0
400	1,980	5.5
500	1,260	3.5

* Based off 6 hours solar pumping per day.

Well Pump: 16" Length, 4" Height, 1" Outlet, ~50lbs Controller: 16” x 16” x 4”, ~22lbs
