RPS Pro Irrigation XL 5hp

Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.

Our Pro Irrigation XL 5hp Pumps are the highest volume, mid-head, non-submersible solar pumps on the market. These are for applications where suction still may be necessary. Flood irrigation, canals, ponds, springs etc. Self priming suction up to 25' but the less priming, the better GPM production at lower head. The systems use best-of-the-best USA 3-Phase GOULDS Motors and Pump Ends.  Pump from sun up to sun down or program an irrigation timer for a custom watering schedule. Our controllers are some of the best in the world and allow customization and optimizatin based on sun and season. There is no other kit like this on the market!

Need even larger? Check out Big Ag Pumps!

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

Kit Contents

The RPS Pro Irrigation systems contain:

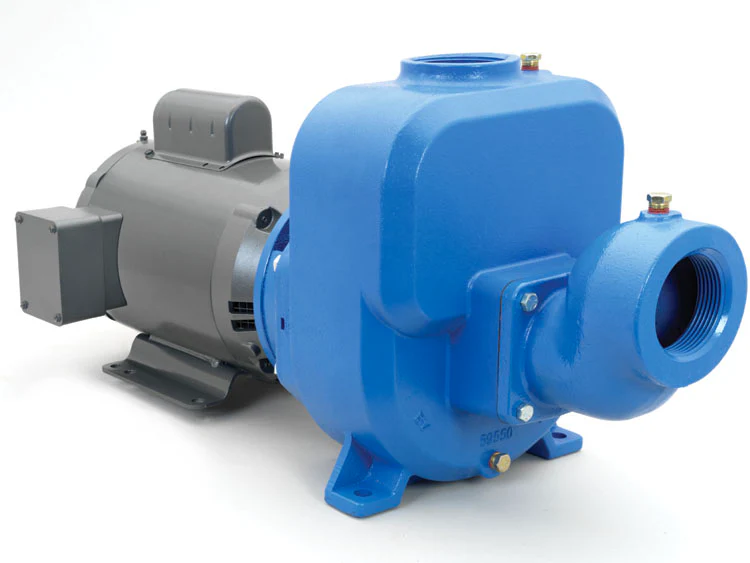

• 5hp Goulds Irrigation Pump, 2.5" FNPT outlet (see curves above)
• 4kW Rated Solar Controller (takes DC Voltage from Solar Panel array +ability to run with 8000w 220v 1 Phase Generator)

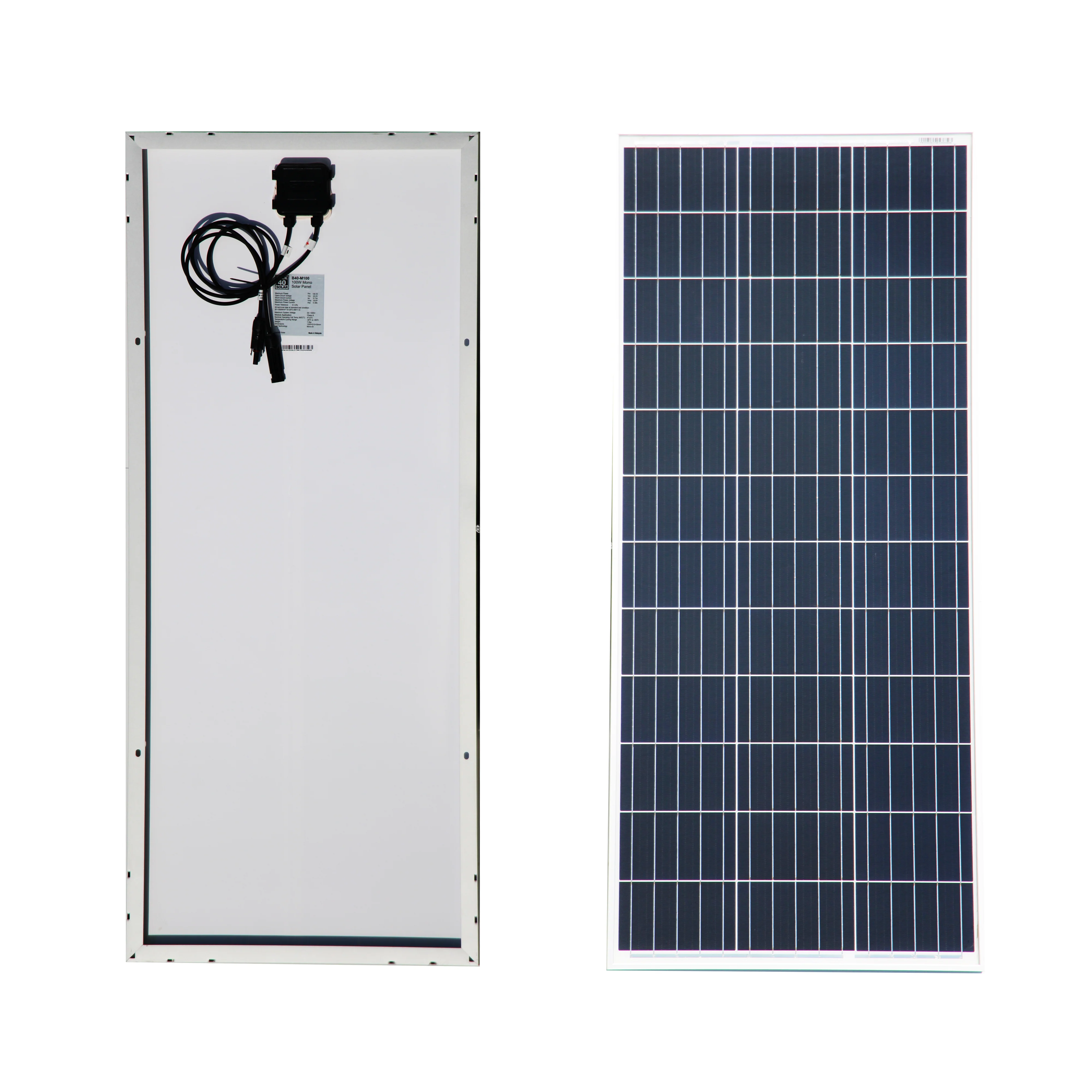

• 6.2kW Solar Array - Mono solar panels
• Simplified Wiring Diagrams for easy hookup
• Grounding Kit (copper wire, lug and tape)
• Email & Phone support before and during installation
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
• 2 Year Comprehensive Warranty
• 20 Year Solar Output Guarantee
• 25 Year Support Guarantee with Reconditioned Swap Pricing
• RapidReplace™ Program*



Solar panel mounting is a separate cost, we have easy-to-install DIY Scalable Ground Mounting options.

Unlike our line of 3'' Submersible Pumps, like the RPS 200, 400, 800, the surface pump TPP or even our Gridless Sump Pump, the Pro Series is not compatible with batteries.

Copper rod for grounding is customer supplied.

Component Dimensions:

Well Pump: 23.5" Length, 14" Width, 13.25" Height, ~135 lbs Controller: 17” x 14” x 6.5”, ~23lbs Solar Panels:   47”x 20”x 1.18”~15lbs Each (100W panels) 79" x 39" x 1.4", ~51 lbs Each (390W panels) Pro Irrigation XL 5 HP: 16 x 390W



Downloads:

RPS Pro Irrigation XL 5hp SPEC SHEET.PDF 📄

100W SOLAR PANEL SPEC SHEET.PDF 📄

390W SOLAR PANEL SPEC SHEET.PDF 📄

Sizing

Gallons Per Day (GPD)

Head (ft)	Pro S3000	Pro Irrigation XL 5hp
25	39,600	86,400 (345,600  24hr)
50	37,800	79,200 (316,800  24hr)
75	33,480	66,600 (266,400  24hr)
100	25,920	54,000 (216,000  24hr)
120	16,200	43,200 (172,800 24hr)
140	-	25,200 (100,800 24hr)

* Based off 6 hours solar pumping per day.

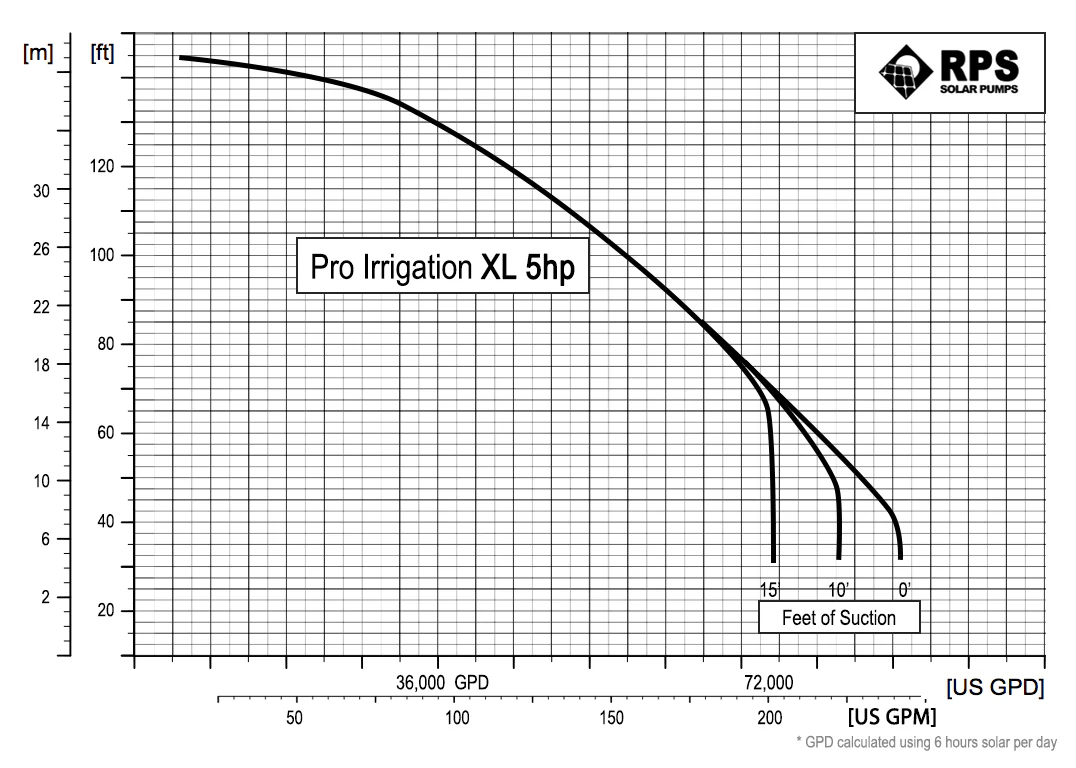

Gallons Per Minute (GPM)

Head (ft)	Pro S3000	Pro Irrigation XL 5hp
25	110	240
50	105	220
75	93	185
100	72	150
120	45	120
140	-	70
