RPS Pro Series D - Deep Well Solar Pump Kits (Over 300ft)

Our Pro Series D pumps are designed for high head, lower volume applications. They may be able to be self-installed, but generally with deep wells we recommend using a local installer who has the equipment to lower the pump/cable/pipe safely. Need more water with under 300ft of head? See Pro Series Mid or Pro Series V – Deep Solar Well Pumps

Our Pro Series D systems use hearty 3-Phase Motors and 3.9″ Pump Ends. Our controllers are the best in the world and allow customization and optimization based on sun and season. Easily switch between solar and another 220V backup power source when the sun isn't shining, like a generator or grid power, using the Pro Controller autoswitching feature.





RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

Kit Contents

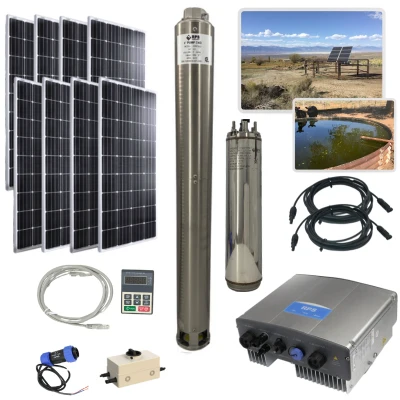

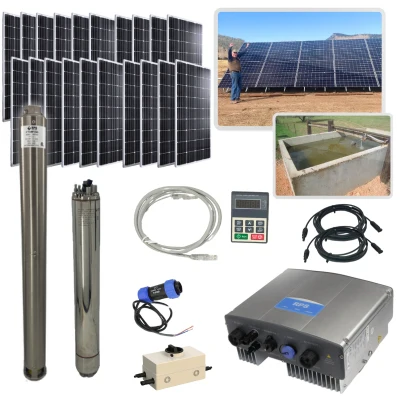

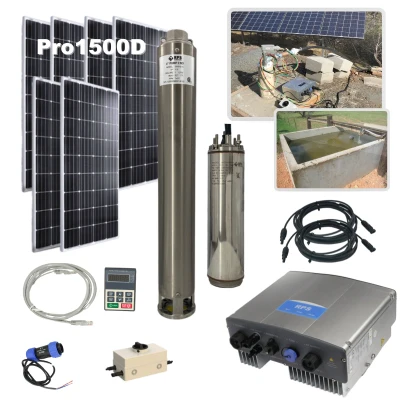

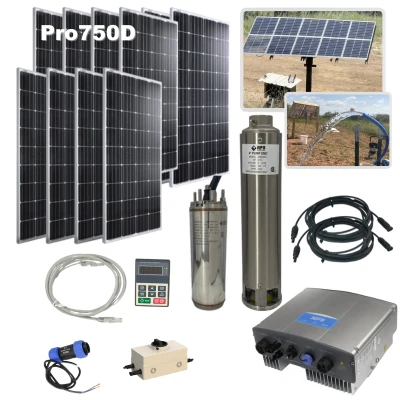

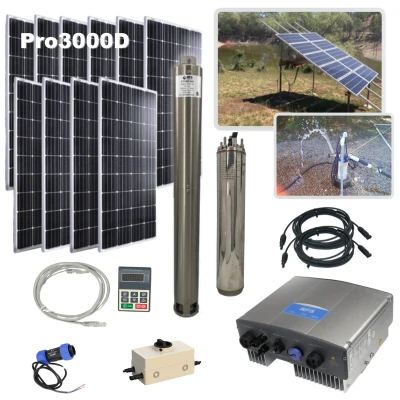

Pro-Series D Systems Include:

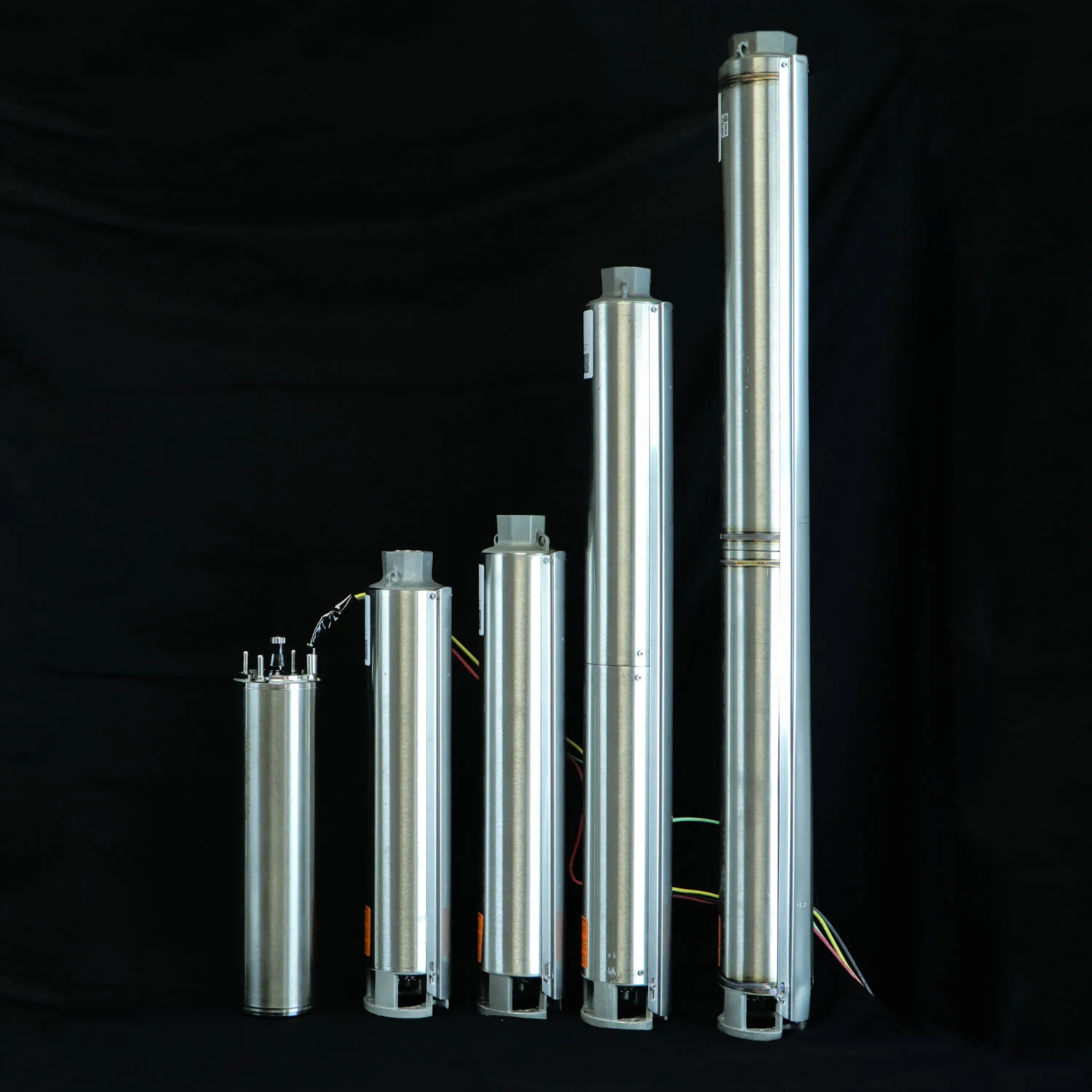

• Brushless Submersible Motor (3 Phase 220v, 3.9” Diameter)

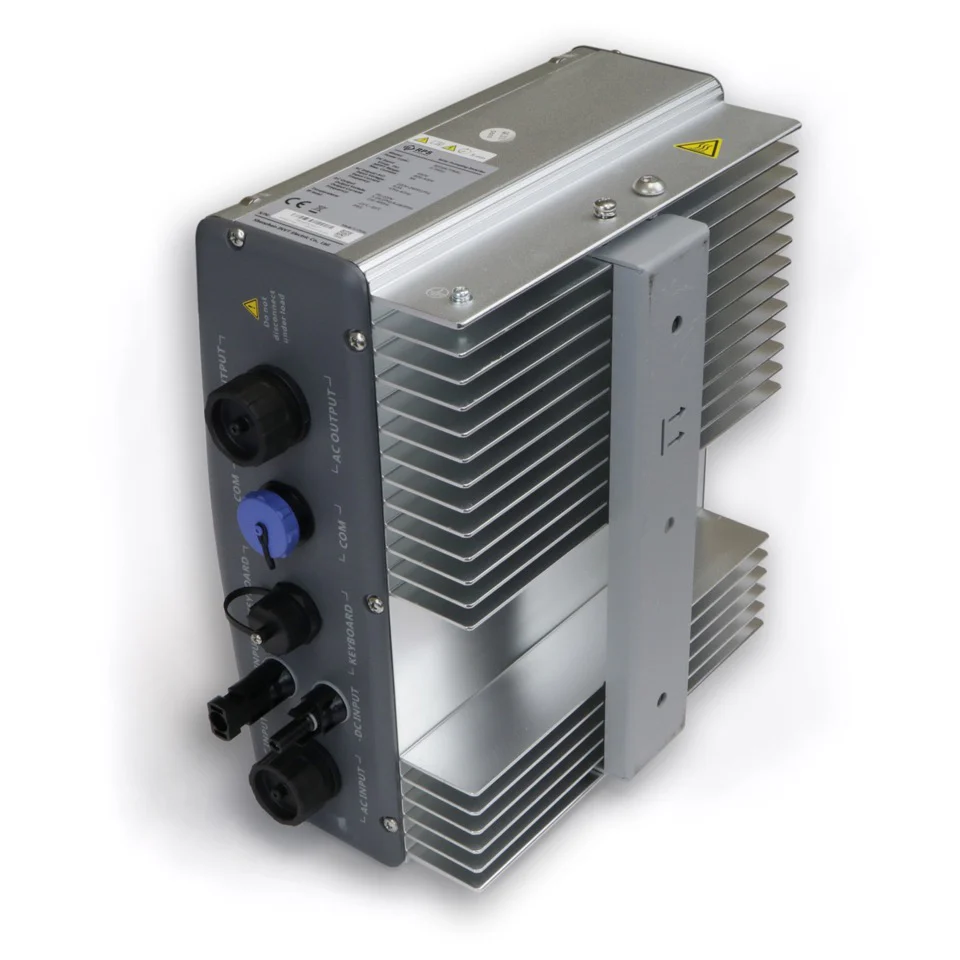

• 2.2 kW Rated Solar Controller (takes DC Voltage from Solar Panel array +Auto-Switch to run with 220v Grid or Generator when not enough solar)
• Large Float Switch for use as high water tank sensor
• Stainless Steel Pump End (sized to your well and water needs)
• Solar Array in Mono/Poly Aluminum-framed UL Solar Panels
• All connector cables from solar panels to controller
• Built in No-Slam Check Valve
• DC cut-off disconnect switch rated for your array, plug and play with MC4s
• Grounding Kit (copper wire, lug and tape)
• Simplified Wiring Diagrams for easy hookup
• Phone & Email support before and during installation
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
• 2 Year Comprehensive Warranty
• 20 Year Solar Output Guarantee
• 25 Year Support Guarantee with Reconditioned Swap Pricing
• RapidReplace™ Program*

Solar panel mounting is a separate cost, we have easy-to-install DIY Scalable Ground Mounting and Adjustable Top-of-Pole options.

Unlike our line of 3'' Submersible Pumps, the RPS 200, 400, 800, the surface pump TPP or even our Gridless Sump Pump, the Pro Series is not compatible with batteries.

Copper rod for grounding is customer supplied.

Component Dimensions:

Solar Panels: Small: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Large (390W): 79" x 39" x 1.4", ~51 lbs Each Well Pump: MODEL DEPENDENT: 3.9" OD, 1.25-2" FNPT Outlet Controller: 12" x 10" x 6" ~14lbs

Downloads:
RPS Pro-Series D SPEC SHEET.PDF 📄

100W SOLAR PANEL SPEC SHEET.PDF 📄

390W SOLAR PANEL SPEC SHEET.PDF 📄

Sizing
