SolarFalls™ - The World’s First Solar Powered Waterfall Maker from RPS

Your pond is a sanctuary of wildlife and recreation. Waterfalls and cascading water features circulate tens of thousands of gallons of water per day, meaning a wonderful soundscape and a healthier, more oxygenated ecosystem. From the makers of the award winning Solar Fountain and Aeration systems, SolarFalls™ is the first of its kind - super high volume solar powered pump designed to handle algae, debris and leaves. Without a power bill. Corrosion resistant cast iron and stainless steel construction for years of reliable flow.

Need Larger? Check out Big Ag Pumps

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

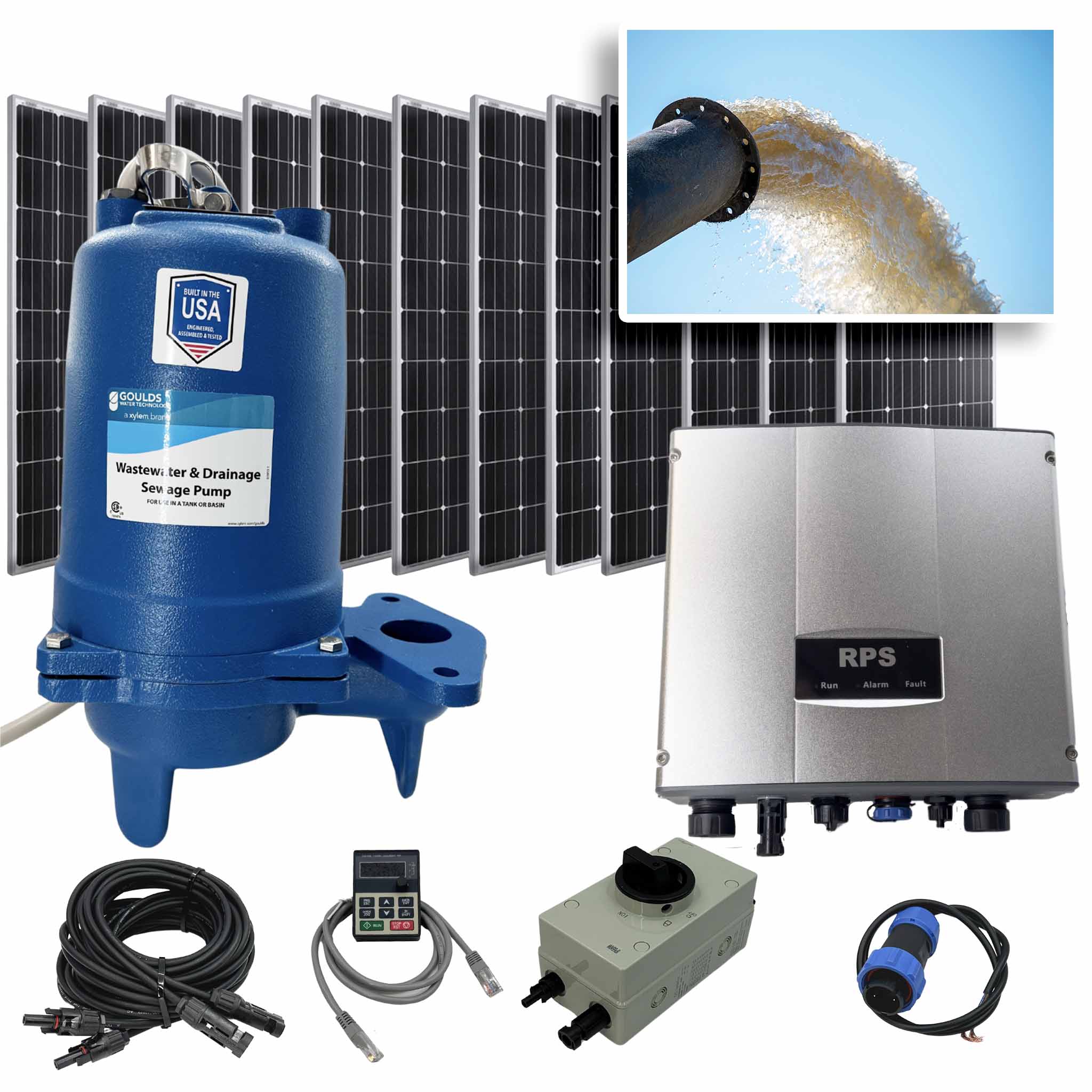

Kit Contents

The RPS SolarFalls™ systems contain:

•  1/2hp, 1hp, 3hp, 5hp Heavy Duty Pond/Sump Pump (3 Phase)
•  2.2 to 4kW Rated Solar Controller (takes DC Voltage from Solar Panel array +ability to run with 3000w 220v 1 Phase Generator)
•  2" or 3" pump outlet
•  0.8kW to 6.2kW Solar Array - Mono Solar Panels
•  Grounding Kit (copper wire, lug and tape)
•  Simplified Wiring Diagrams for easy hookup
•  Email & phone support before and during installation
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
•  2 Year Comprehensive Warranty

• 20 Year Solar Output Guarantee

• 25 Year Support Guarantee with Reconditioned Swap Pricing

• RapidReplace™ Program*

Solar panel mounting is a separate cost, we have easy-to-install DIY Scalable Ground Mounting and Adjustable Top-of-Pole options.

Copper rod for grounding is customer supplied.

Component Dimensions:

Solar Panels: Small: 47” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Large: 66” x 40” x 1.4”, 375W, ~40lbs Each Pump: Model Dependent, 2"/3" Inlet/Outlet  Controller: 12" x 10" x 6" ~14lbs

Downloads:

100W SOLAR PANEL SPEC SHEET.PDF 📄

375W SOLAR PANEL SPEC SHEET.PDF 📄

Sizing

	SolarFalls™ 500	SolarFalls™ 3000	SolarFalls™ 5000
Small Drop Falls	115 GPM	320 GPM	450 GPM
High Drop Falls (20’) *		250 GPM	400 GPM

* GPM will reduce slightly as pumping head increases.  Falls higher than 20 feet? Call and Ask an RPS Pro at 888-637-4493

Pump: 12.5" Diameter, 19" Height, ~50-70lbs Controller: 16” x 16” x 4”, ~22lbs Solar Panels:  47”x 20”x 1.18”~15lbs (100W panels)  65"x 39"x1.38" ~ 40lbs (375W panels) SolarFalls™ 500: 8 x 100W  SolarFalls™ 3000: 10 x 375W SolarFalls™ 5000: 20 x 375W
