TPP Tankless Pressure Pump™ System 1HP



Due to High Demand, Lead Times Apply for This Item. Call For Details: 888-637-4493

*Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.*

Finally an off-grid pressurized water system without compromises!

The most exciting solar pump system for pressurized water ever to be released!

With the RPS Tankless Pressure™ System you'll get smooth continuous steady reliable water pressure without the need for AC power, a pressure tank or the utility grid. The solar charged battery bank powers a centrifugal booster pump that varies its speed and power based on your demand for water at the exact pressure you select from 20 to 45psi. Need reliable drip irrigation? Set system to 20 or 30 psi. Need household water pressure or sprinklers? Set system to 45psi. Flow rates from 5 to 25 GPM are supported. 15’ suction from a pond or shallow well with foot valve. When possible, reducing distance between foot valve and pump helps in priming. 1-1/4", 1-1/2" or even 2" for longer runs helps prevent frictional loss if over 50 feet. Pump has 1.25" FNPT Inlet, 1" FNPT outlet. Worry-free backup from 220V AC Grid or generator power recharges batteries when the sun doesn't shine. The TPP REQUIRES batteries for solar operation. Online spec sheet.

Best for single story houses. Two story houses should choose the TPP-HP, BP2 Eco-Steady Booster or the BP3 Eco-Steady Booster.

No more pressure tanks necessary.
No more leaky diaphragm pumps.
No more brushed motors.
No more low flow.
No more weak sprinklers.
No more loud surface pumps.
No more limits to your water.

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

Kit Contents

TPP Kits Include:

• 100w Mono-crystalline Solar Panels (see table above)

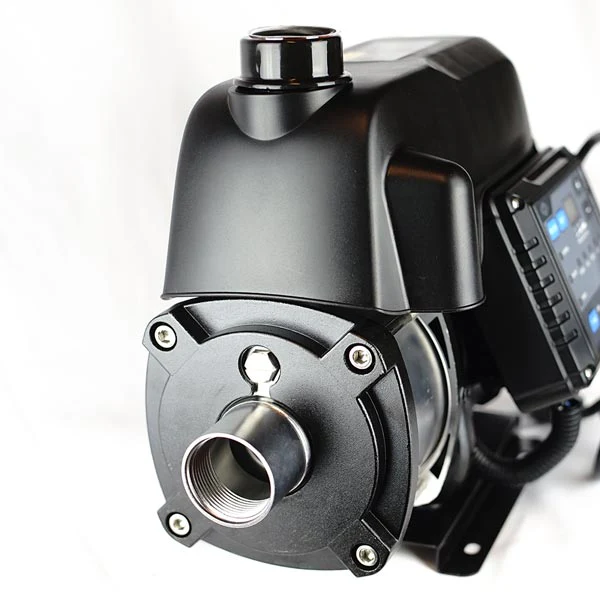

• Tankless Pressure Pump™

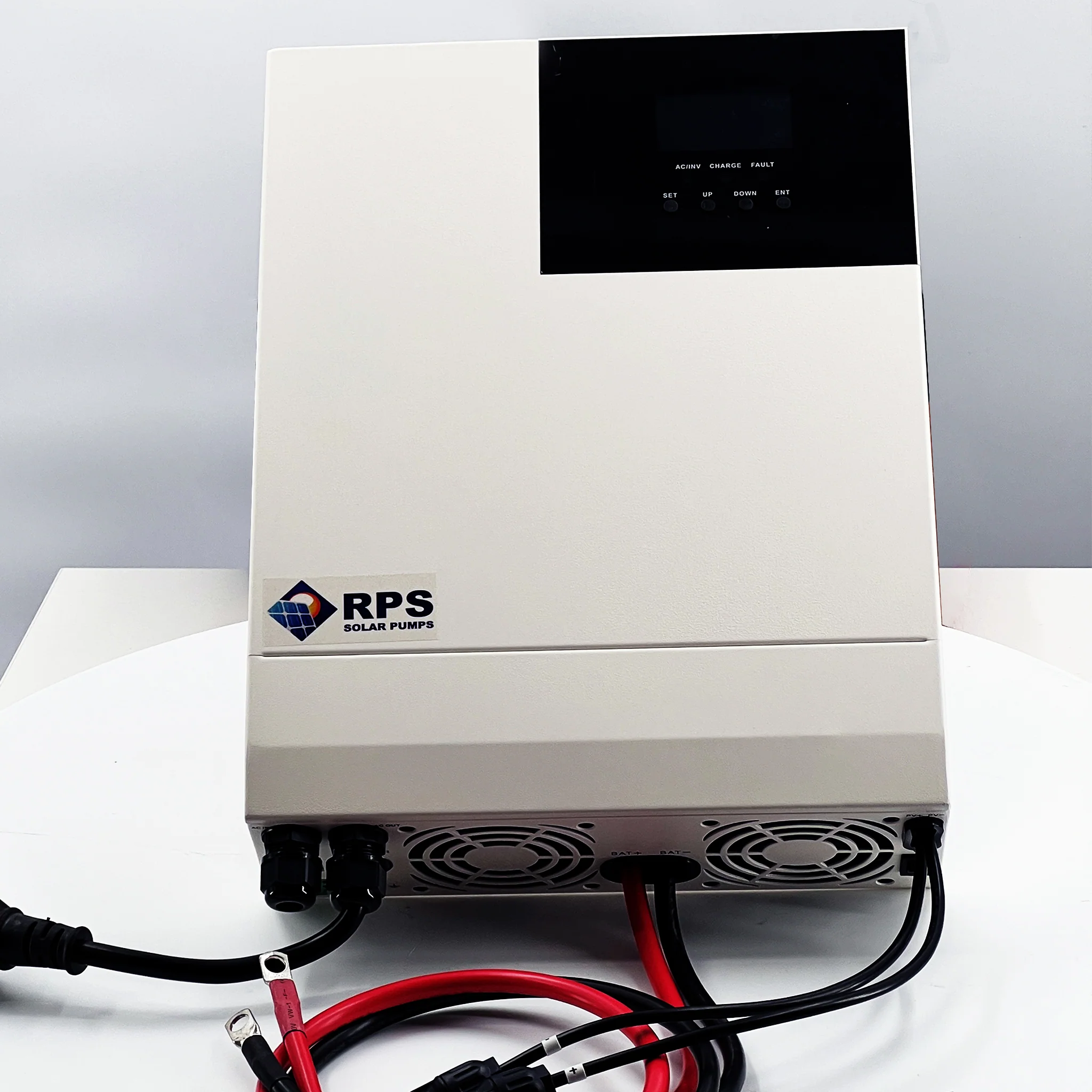

• TPP Controller to regulate power transfer between pump, panels and batteries
• Batteries (see table above)
• Solar Wires to connect solar panels to controller
• 100A DC Breaker for connection between batteries and controller
• Wires to connect to battery bank (RPS 55Ah 12V Deep Cycle GEL)
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
• The same great comprehensive 2 year warranty as our other RPS systems
• 20 Year Solar Output Guarantee
• 25 Year Support Guarantee with Reconditioned Swap Pricing
• RapidReplace™ Program*


Solar panel mounting is not included in the standard TPP system, you can purchase one of our easy-to-install Top of Pole mounts or Scalable Ground Mounts.

Component Dimensions:

Solar Panels: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Large (390W): 79" x 39" x 1.4", ~51 lbs Each Well Pump: 14" x 12" x 9", 1.25"/1" FNPT Inlet/Outlet ~22lbs Controller: 15" x 11" x 4" ~14lbs

Downloads:

TPP Tankless Pressure Pump™ System 1HP SPEC SHEET 📄

100W SOLAR PANEL SPEC SHEET.PDF 📄

390W SOLAR PANEL SPEC SHEET.PDF 📄



BATTERIES

Although you have the option to supply your own batteries (either Lead Acid or Lithium Ion), our engineers designed the Tankless Pressure Pump System using RPS Lead Acid Deep Cycle Marine Sealed GEL batteries. Our batteries provide optimal performance and operation without the maintenance, sealed batteries don't require any water top offs! We're not just in the pump business, we're also committed to providing full system technical support to ensure all parts work happily together. Customer support is a lot easier when working with batteries we know are 100% compatible.



Sizing

Technical Specs on Batteries



	TP-750-8	TP-750-12
Solar Panels Included 100w	8	12
55Ah Batteries Included	8	12
Hours Pumping **	3-4	4-6
Gallons Per Day **	3200-5000	4000-8000

** Depends on initial charge rate, concurrent solar input and real-world conditions. Batteries not included.
*** 30 Day Money-Back Guarantee and Comprehensive 12 Month Warranty on all system components.

RPS Tankless Pressure™ gives you pressurized water without the Pressure Tank and without the need for AC grid power! The era of the Tankless Pressure™ Pump has begun.
