Get Ready for Winter

Does your water system experience below freezing temperatures? Then get ready for the winter by installing this permanent solution in your well. The weep hole provides a draining system that occurs below the freezing point so there's no worry of bursting pipes with frozen water above ground. This kit provides a cost-effective solution for those without a Pitless Adapter system and who don't want to dig trenches for their pipes.

What is a Weep Hole?

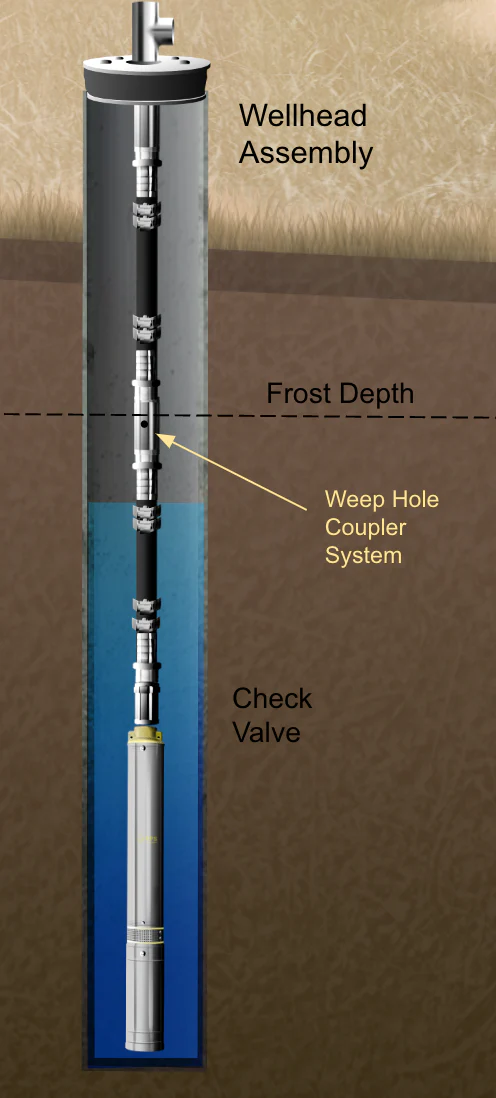

A weep hole is a small hole drilled into drop pipe or coupler. A weep hole lets the water drain below the frost line. Installing a weep hole insures all of the plumbing above ground will be safe from water freezing in the lines with stagnant water in below freezing temperatures.

Installation

Choosing the correct depth of installation is crucial for proper functioning of the weep hole system. You'll install the weep hole kit just below your frost line. You need to know where the frost line is in your area, this can be anywhere from less than one foot up to 8 feet. We suggest consulting your city or county building department, or researching online for {your city} and "frost line" information. Can also be used with rigid pipe, thread on weep hole coupler is FNPT.

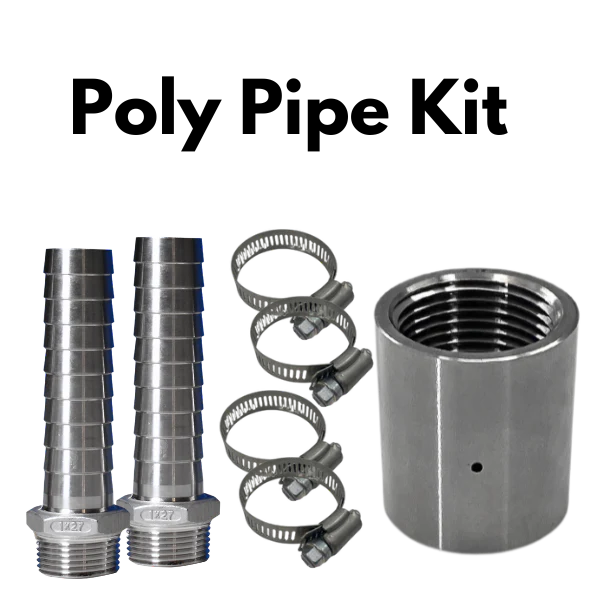

Kit Contents

Poly Pipe Kit

1 Weep Hole Coupler

2 x Hose Barbs

4 x Hose Clamps

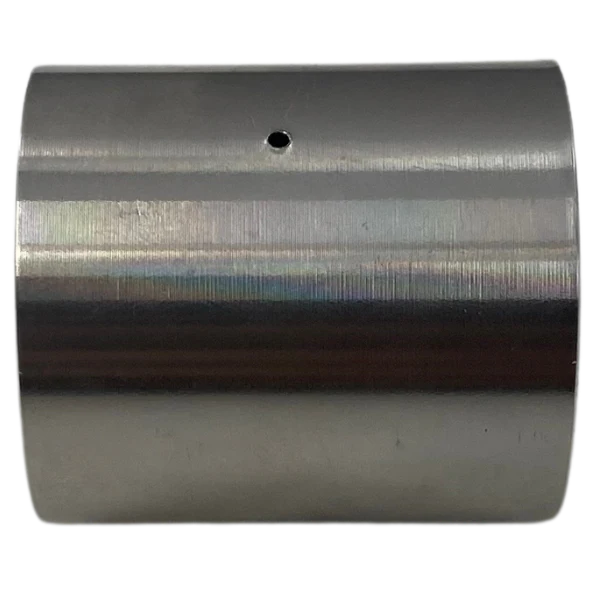

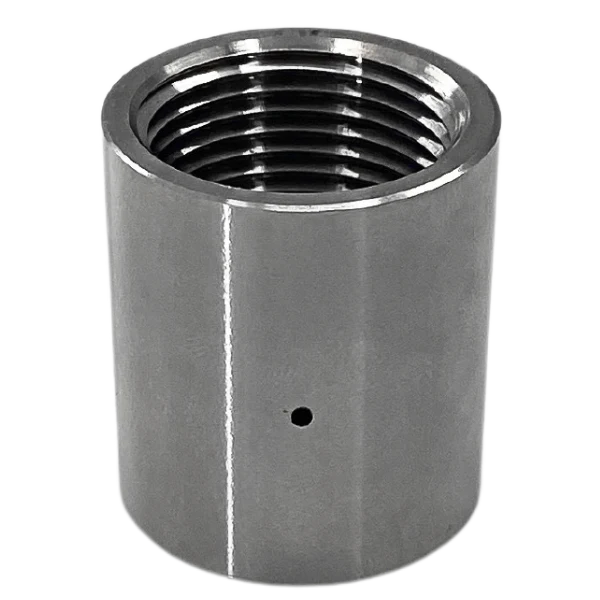

The weep hole is located on the Stainless Steel Coupler with a 3/32" hole in the side. Our high-quality 304 stainless steel couplers are made with schedule 40 thickness for added durability and corrosion resistance.

This product is perfect to add onto your Turnkey!
