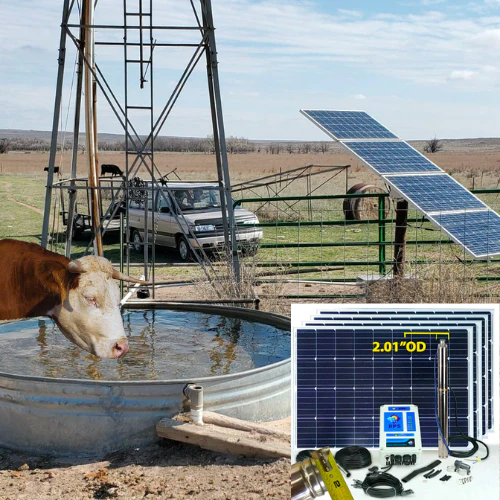

Looking to replace an old windmill without tearing it all down?
Finally a solution for windmill wells that could never take a submersible pump before!! RPS carries two options to retrofit a windmill well, the first is our RPS 200, RPS 400 and RPS 800 3" Submersible Pumps that fit a 3.5" or larger well-casing. The second option is the now famous Narrow pump series RPS 200N, RPS 400N and RPS 800N measuring a miraculous 2.01" in diameter and the first of its kind. The narrow series fits 2.5" casings that are so common in old windmills. And yes, it can also sneak in next to an existing pump/drop-pipe in a 6" well casing to act as a backup redundant pump, or if a pump is stuck down in the well.
Our 2" and 3" pumps feature a helical rotor. These pumps are designed to operate on solar power alone and feature a brushless DC motor to keep temperature down and efficiency up in a tight well casing. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as needed. The most efficient brushless permanent magnet motors mean no replacement of carbon brushes and years of smooth, reliable performance. Lifetime Rotor Warranty and the only field-serviceable pump available save you thousands over other options.

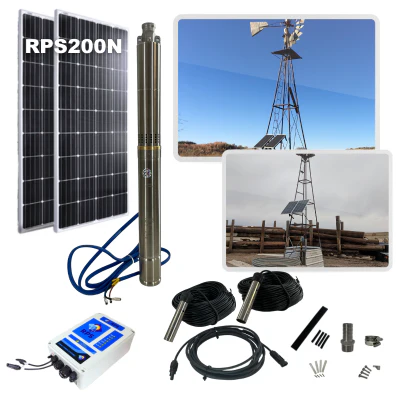

The RPS 200 and RPS 200N use 2 x 100W panels
The RPS 400 and RPS 400N use 4 x 100W panels
The RPS 800 and RPS 800N use 8 x 100W panels
Common Questions:

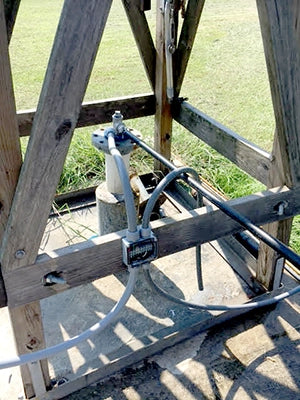

Can I keep my old windmill in place?
Yes! Because our systems use flexible poly-pipe instead of rigid PVC, it's an easy swap to carefully pull out the old PVC piping and slide the poly-pipe and pump down the well without having to tear down your windmill. Keep the windmill for decoration on the ranch as a staple of the American way of life!

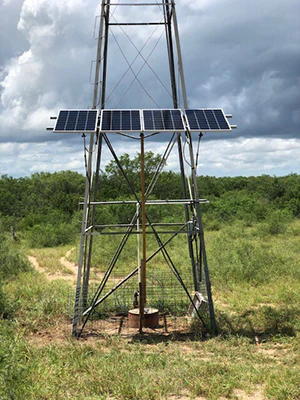

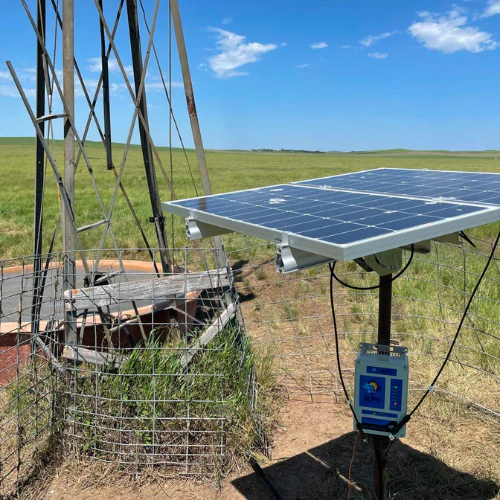

Can I mount solar panels on my old windmill?
Yes! Many of our happy customers have created their own easy ways to attach their panels to their old trusty windmill frame. Watch our Q&A video with Mike as he shows some great examples or see how one of our happy customers decided to do it!
RPS is a growing 100% American-owned company of friendly, helpful solar water specialists. We are honored and blessed to have such great staff and customers all over this great country.

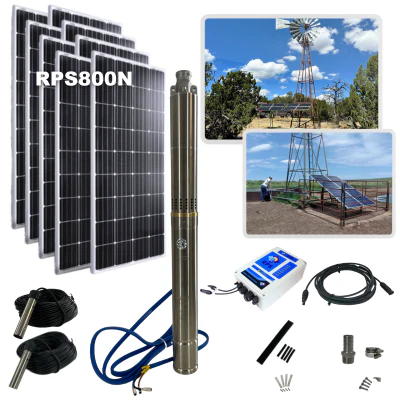

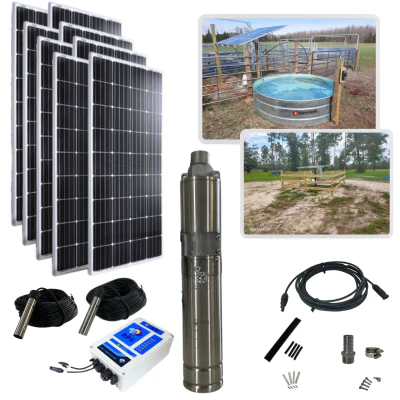

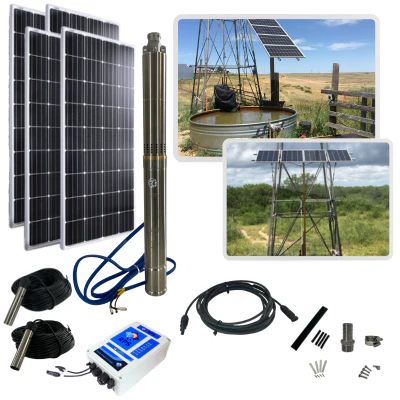

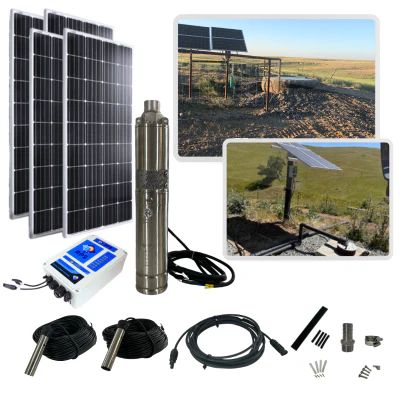

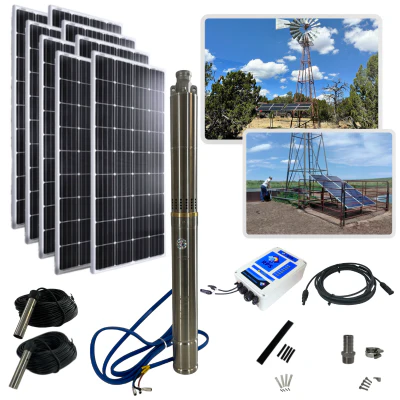

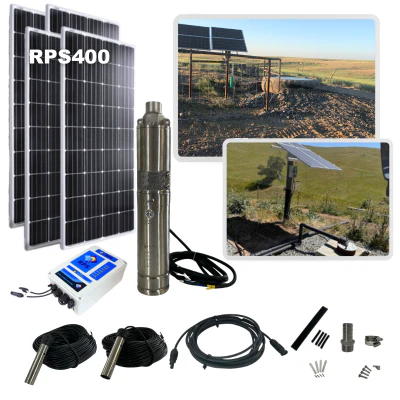

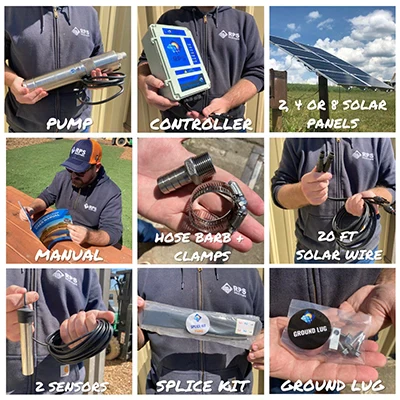

Kit Contents
RPS 200N / 400N / 800N and RPS 200/400/800 Kit contains:
- 2x to 8x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels (Dimensions are roughly 3.2' long, 1.7' wide and a little more than 1" thick)
- RPS Helical Rotor Pump (2.01" OD 200N/400N/800N, 3" OD 200/400/800.) with DC Brushless Permanent Magnet Motor

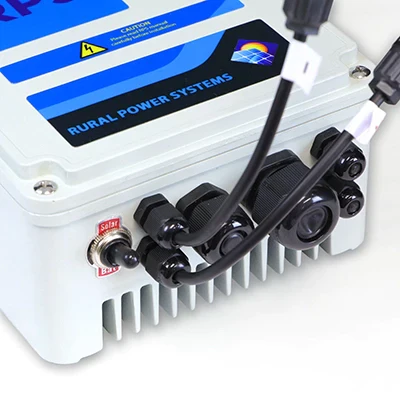

- RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop
- 1/2" MNPT thread to 3/4" hose barb and hose clamps for use with 3/4" black poly pipe (200N, 400N, 800N) or 3/4" MNPT thread 3/4" hose barb and hose clamps for use with 3/4" black poly pipe (200, 400, 800)
- 1x Low-water Well Level sensor
- 1x Tank Shut-off sensor
- Solar Panel cable connectors
- Waterproof heatshrink wire splice kit with pre-crimped pump wires
- Detailed full-color solar pump guide with step-by-step install instructions
- Access to RPS video archives of installation tips & product walkthroughs
- Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
- 30 Day Money-Back & 100% Water Assurance Guarantee
- Lifetime Rotor Warranty which is only wear part and Field Serviceable
- 2 Year Comprehensive Warranty
- Phone / Email / Text Support from Friendly USA based RPS Engineers
- 20 Year Solar Output Guarantee
- 25 Year Support Guarantee with Reconditioned Swap Pricing
- RapidReplace™ Program*
Solar panel mounting is not included in the standard system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.

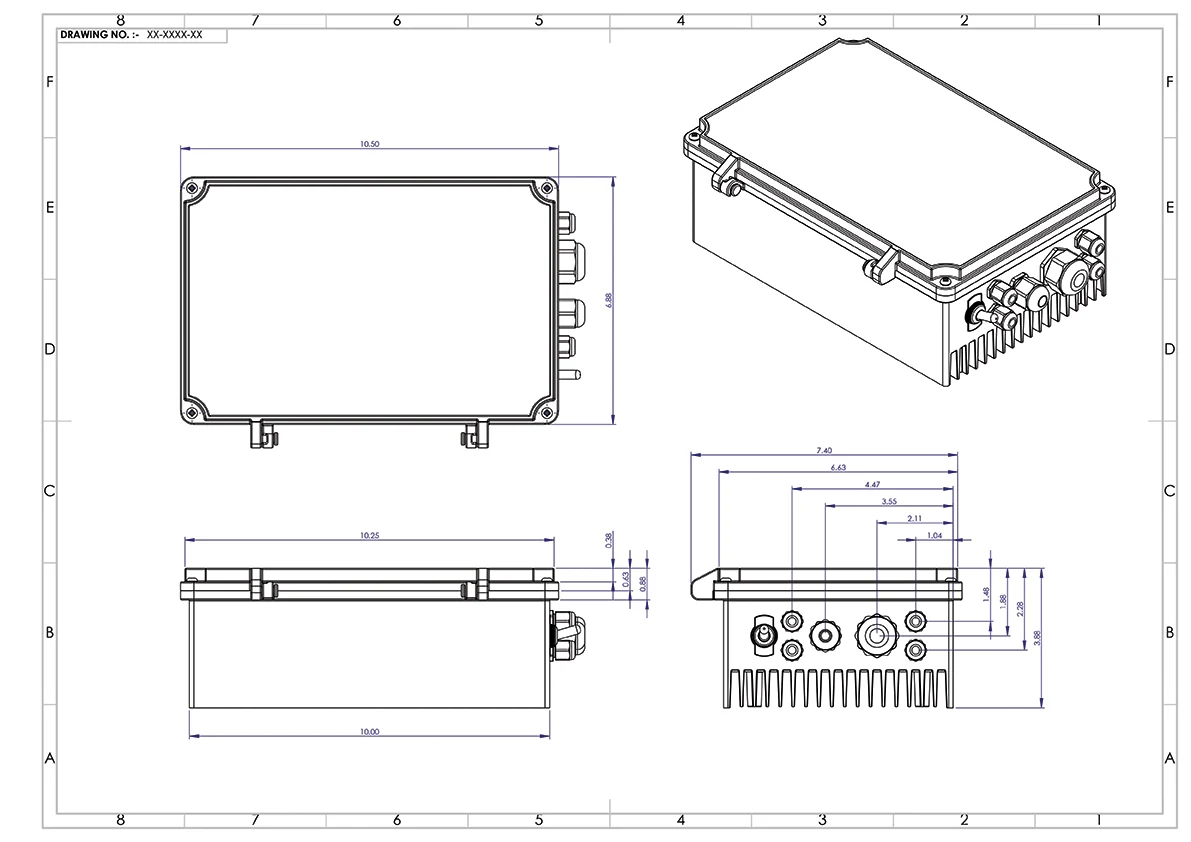

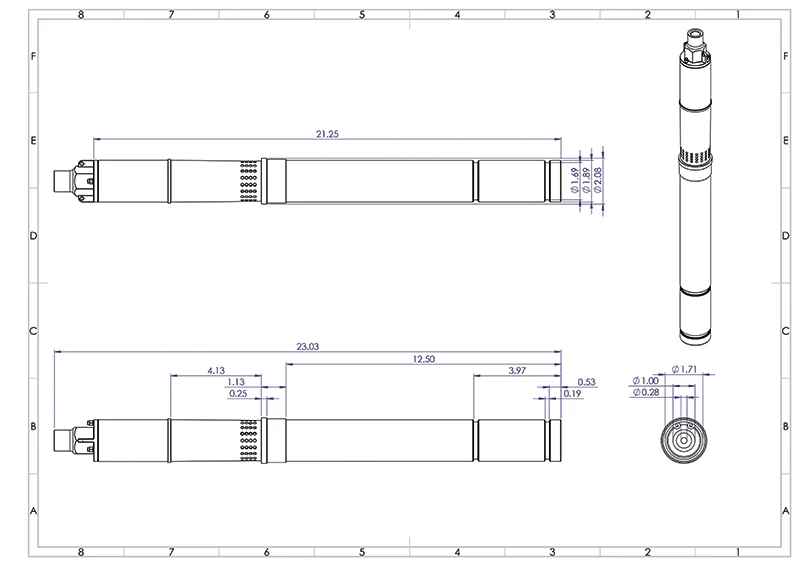

Component Dimensions:
|
Solar Panels: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Well Pump: 2.01" OD, 24" Long, 1/2" FNPT Outlet ~12lbs or 2.9" OD, 21" Long, 3/4" FNPT Outlet ~14lbs Controller: 13” x 8” x 6”, ~10lbs |
Downloads:
RPS 200/400/800 SPEC SHEETS.PDF 📄
100W SOLAR PANEL SPEC SHEET.PDF 📄
Optional Add-ons and Upgrades:
|
Pump Kit Only |
Pump Kit + Turnkey Kit |
Pump Kit + 2P Mount Kit |
|
| RPS Solar Pump & RPS Solar Controller |
✅ | ✅ | ✅ |
| Solar Panels 100W Aluminum Frame |
✅ | ✅ | ✅ |
| Solar Panel Mounting Adjustable Tilt Pole Mount |
✅ | ✅ | |
| Controller Mounting 2” or 4” Post Straps & Plates |
✅ | ||
| Controller Mounting Tabs & Lags for Plywood |
✅ | ✅ | ✅ |
| Solar Wire Two 20’ Lengths with MC4s |
✅ | ✅ | ✅ |
| Steel Post + Cement 2-3/8” OD or 4.5” OD Pipe |
Customer Supplied | Customer Supplied | Customer Supplied |
| 12-3 Pump Wire 6’ + butt crimps on pump |
✅ 100’ or 200’ or 300’ |
|
|
| Pump Wire Splice Kit With Wire Labels |
✅ | ✅ | ✅ |
| Low Water Sensor + Wire |
✅ 100’ |
✅ 100’ or 200’ or 300’ |
✅ |
| Tank Full Sensor + Wire |
✅ 100’ |
✅ 100’ |
✅ |
| Sensor Wire Splice Kit |
✅ | ✅ | ✅ |
| Safety Rope Yellow No-Decay Twisted Poly |
✅ 100’ or 200’ or 300’ |
||
| Black Poly Pipe 160psi Rated |
✅ Choose ¾” or 1” |
||
| Pump-to-Poly Pipe Barbed Coupling + Hose Clamps |
✅ | ✅ | ✅ |
| Well Seal SS Plumbing All Stainless with barb & tee |
✅ | ||
| Standard Well Seal |
✅ Choose 4”, 5”, 6” or 8” |
||
| Grounding Lug for controller |
✅ | ✅ | ✅ |
| Bare copper wire roll & Grounding Clamp |
✅ | ||
| Grounding Rod 4’ or 8’ if required by code |
Customer Supplied | Customer Supplied | Customer Supplied |
| Teflon Tape For SS plumbing |
✅ | ||
| Electrical tape For bundling pipe/rope/wire |
✅ | ||
| Digital Multimeter For testing voltages if needed |
If Requested | ||
| Our Award Winning RPS Support Team if you need us! | ✅ | ✅ | ✅ |
|
|
Pump Kit Only |
Pump Kit + Turnkey Kit |
Pump Kit + 2P Mount Kit |

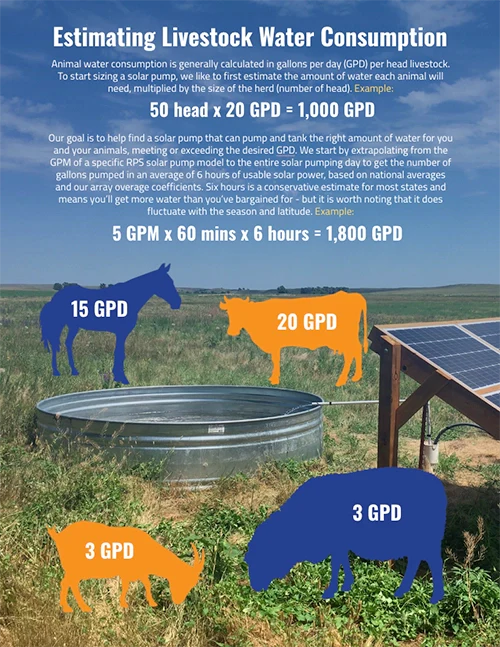

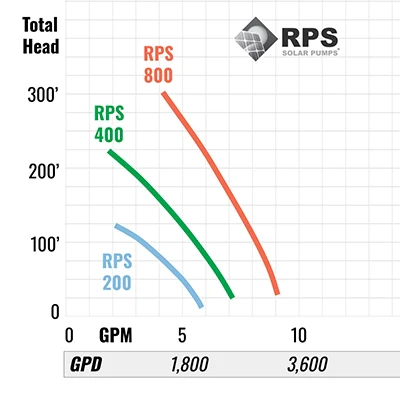

Sizing
Gallons to Expect from RPS 2" Pumps
* Based on a 6 hour solar pumping day
|
RPS 200N Gallons Per Day (GPM) Recommended for up to 25 Head of Cattle |
RPS 400N Gallons Per Day (GPM) Recommended for up to 100 Head of Cattle |
RPS 800N Gallons Per Day (GPM) Recommended for Herds over 100 Head of Cattle |
|
| No Head | 2160 (6 GPM) |
|
|
| 25 | 2016 (5.6 GPM) |
|
|
| 50 | 1800 (5 GPM) | ||
| 75 | 1476 (4.1 GPM) | 2376 (6.6 GPM) | |
| 100 | 1152 (3.2 GPM) | 2160 (6 GPM) | |
| 125 | 756 (2.1 GPM) | 1872 (5.2 GPM) | |
| 150 | 1620 (4.5 GPM) | 2808 (7.8 GPM) | |
| 175 | 1332 (3.7 GPM) | 2772 (7.7 GPM) | |
| 200 | 1008 (2.8 GPM) | 2520 (7 GPM) | |
| 225 | 540 (1.5 GPM) | 2160 (6 GPM) | |
| 250 | 1800 (5 GPM) | ||
| 275 | 1440 (4 GPM) | ||
| 300 | 1116 (3.1 GPM) | ||
| 325 | 756 (2.1 GPM) |
Gallons to Expect from RPS 3" Pumps
* Based on a 6 hour solar pumping day
|
RPS 200 Gallons Per Day (GPM) Recommended for up to 25 Head of Cattle |
RPS 400 Gallons Per Day (GPM) Recommended for up to 100 Head of Cattle |
RPS 800 Gallons Per Day (GPM) Recommended for Herds over 100 Head of Cattle |
|
|
No Head |
1836 (5.1 GPM) |
2736 (7.6 GPM) |
3204 (8.9 GPM) |
|
25 |
1692 (4.7 GPM) |
2628 (7.3 GPM) |
3168 (8.8 GPM) |
|
50 |
1584 (4.4 GPM) |
2484 (6.9 GPM) |
3132 (8.2 GPM) |
|
75 |
1188 (3.3 GPM) |
2196 (6.1 GPM) |
2952 (7.9 GPM) |
|
100 |
1116 (3.1 GPM) |
1980 (5.5 GPM) |
2844 (7.9 GPM) |
|
125 |
756 (2.1 GPM) |
1836 (5.1 GPM) |
2628 (7.3 GPM) |
|
150 |
|
1728 (4.8 GPM) |
2592 (7.2 GPM) |
|
175 |
|
1548 (4.3 GPM) |
2484 (6.9 GPM) |
|
200 |
|
1224 (3.4 GPM) |
2340 (6.5 GPM) |
|
225 |
|
1044 (2.9 GPM) |
2124 (5.9 GPM) |
|
250 |
|
|
1908 (5.3 GPM) |
|
275 |
|
|
1836 (5.1 GPM) |
|
300 |
|
|
1620 (4.5 GPM) |
Need a different model? RPS 200, RPS 400, RPS 600, RPS 800, RPS 400V, RPS 800V, Pro V Series, Pro D Series or
not sure what you need? Use the popular online Sizing Wizard.
Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back! Start Sizing Now »
